PLEASE NOTE: The following assembly and installation instructions apply for all configurations of the Type-X™ Pro Plus 8.5" Driving light.
Table of Contents
WATCH LAUNCH
CONFIGURATIONS
IMPORTANT NOTES:
- Please Note: The only style that differs between DRL and NON-DRL configurations is the covers, as they are specifically made for each type. The bezel, fascia, and shoulder trims are all interchangeable across both DRL and NON-DRL modules.

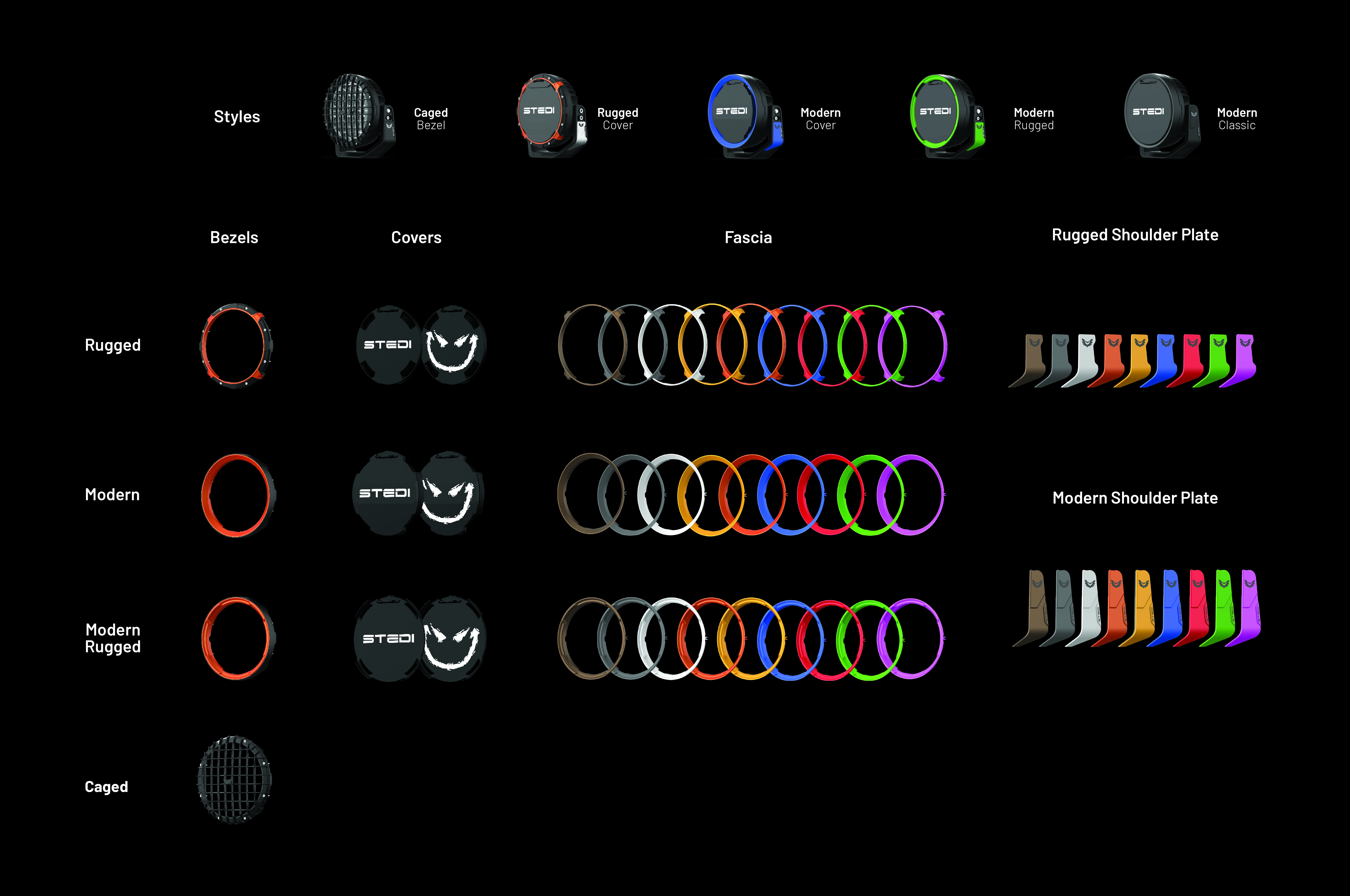

There are 5 different style configurations for the Type-X™ Pro Plus:

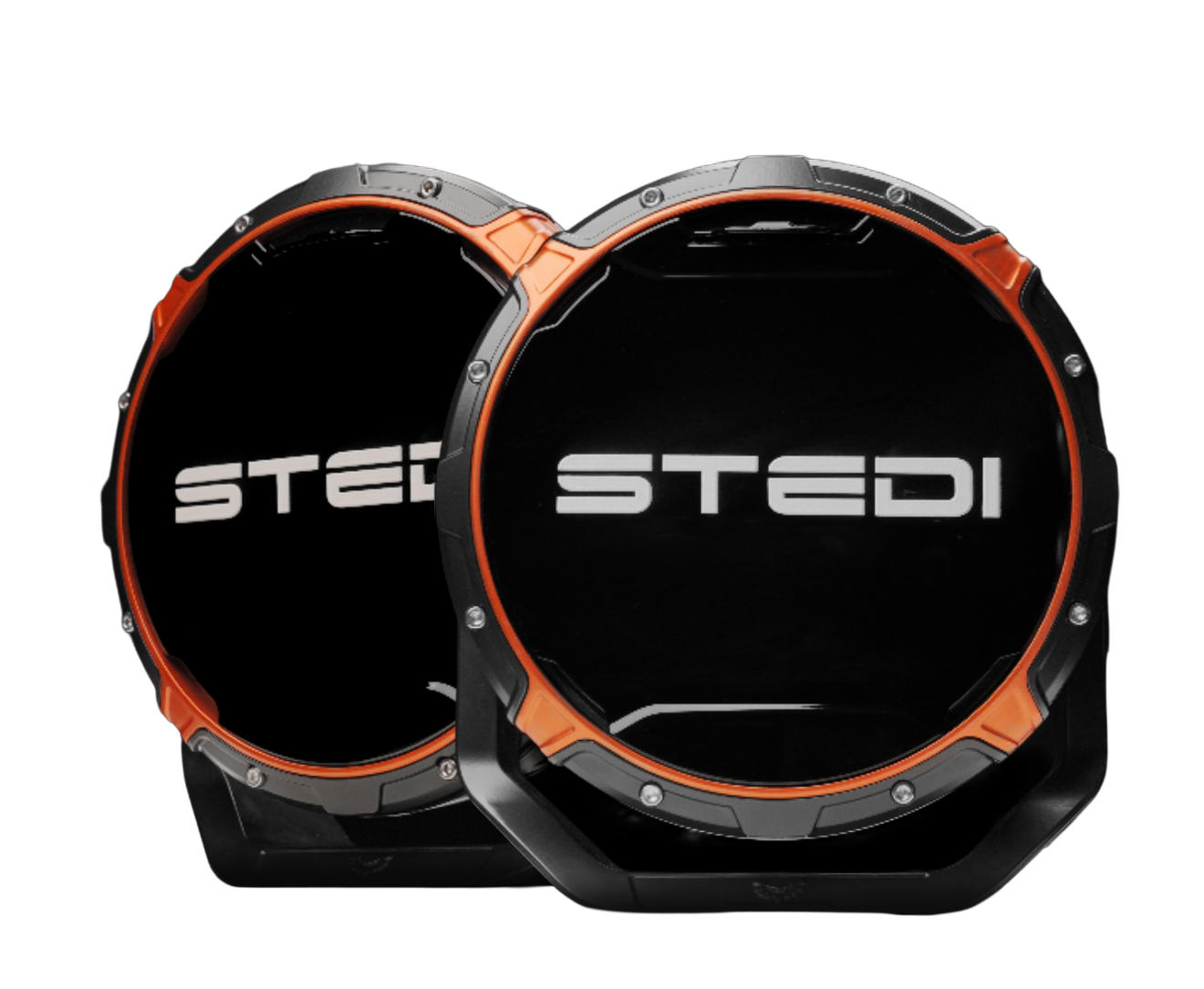

Rugged:
The Rugged option in the Type-X™ PRO PLUS range pays homage to the classic Type-X™ PRO series, retaining its bold and dependable aesthetic. This style blends the timeless design of the original with the cutting-edge features of the PRO PLUS, making it a perfect choice for those who value tradition without sacrificing innovation
Modern Rugged:
The Modern Rugged option in the Type-X™ PRO PLUS series strikes the perfect balance between timeless design and contemporary innovation. Combining elements of our classic driving lights with the sleek curves and accents of modern styling, this configuration offers a versatile aesthetic that’s tough yet refined. Designed to appeal to both fans of the original and those seeking next-generation sophistication, the Modern Rugged option is a true blend of past and future.

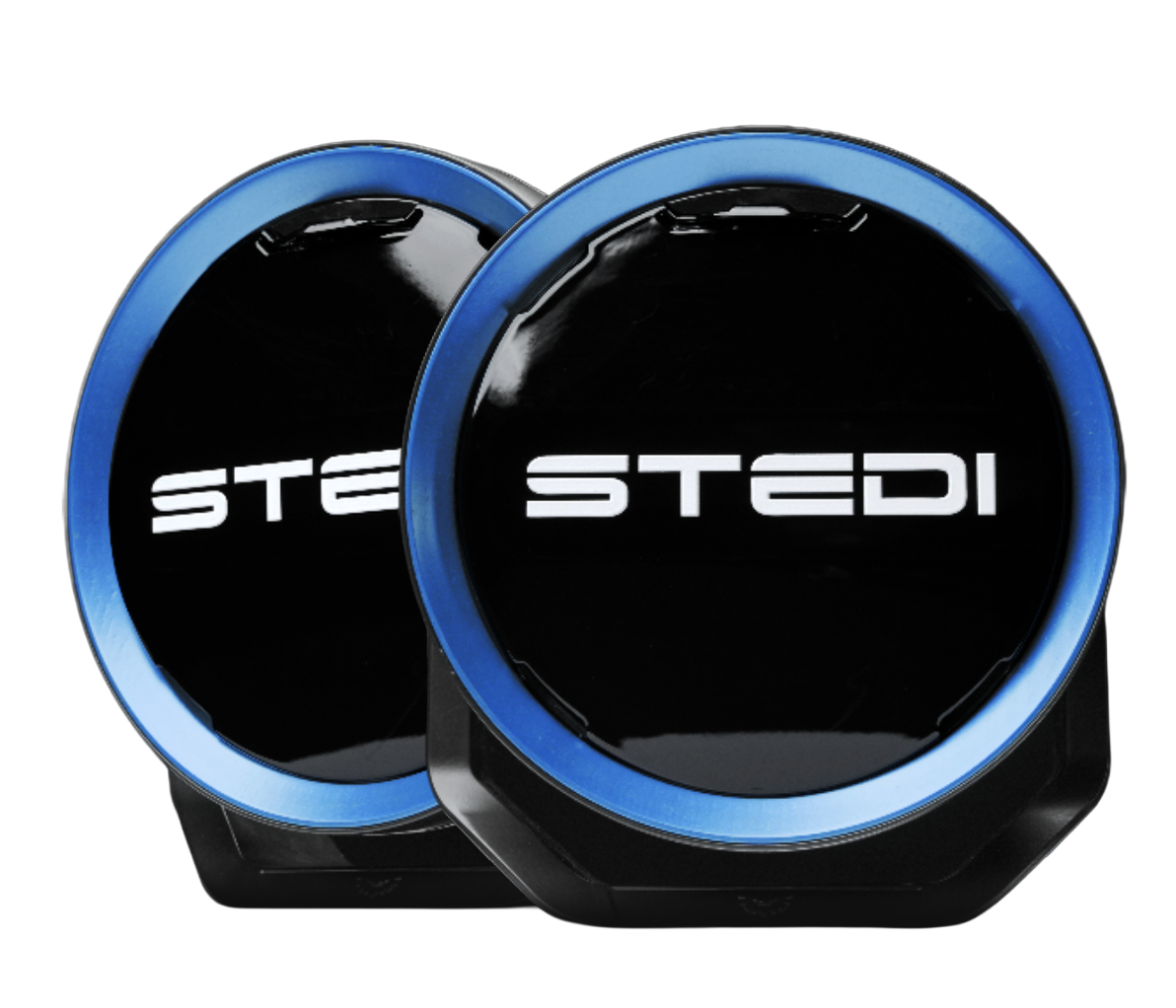

Modern:
The Modern option in the Type-X™ PRO PLUS range is a sleek and refined take on contemporary driving light design. Inspired by the elegant curves and accents of modern vehicles, this configuration brings a sophisticated aesthetic to your lighting setup while maintaining the exceptional performance the Type-X™ series is known for. Perfect for those seeking a seamless blend of cutting-edge style and functionality, the Modern option commands attention on and off the road.
Caged:

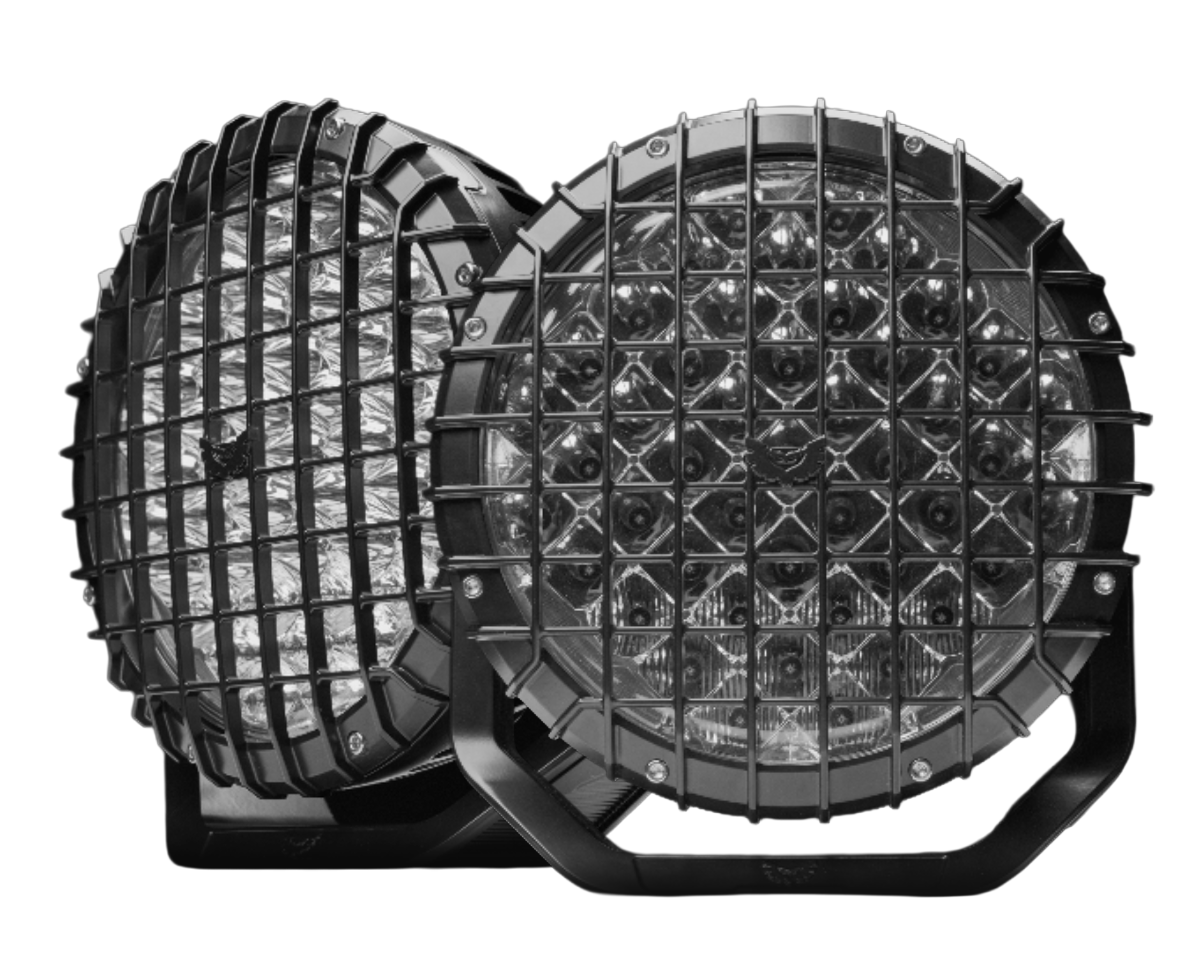

The Caged option in the Type-X™ PRO PLUS series is inspired by the rugged, no-nonsense design of military-spec vehicles. With its tough and durable aesthetic, this configuration embodies strength and resilience while ensuring no compromises on performance. Built to stand out and withstand the harshest conditions, the Caged option is ideal for those who demand both utility and bold design from their driving lights.

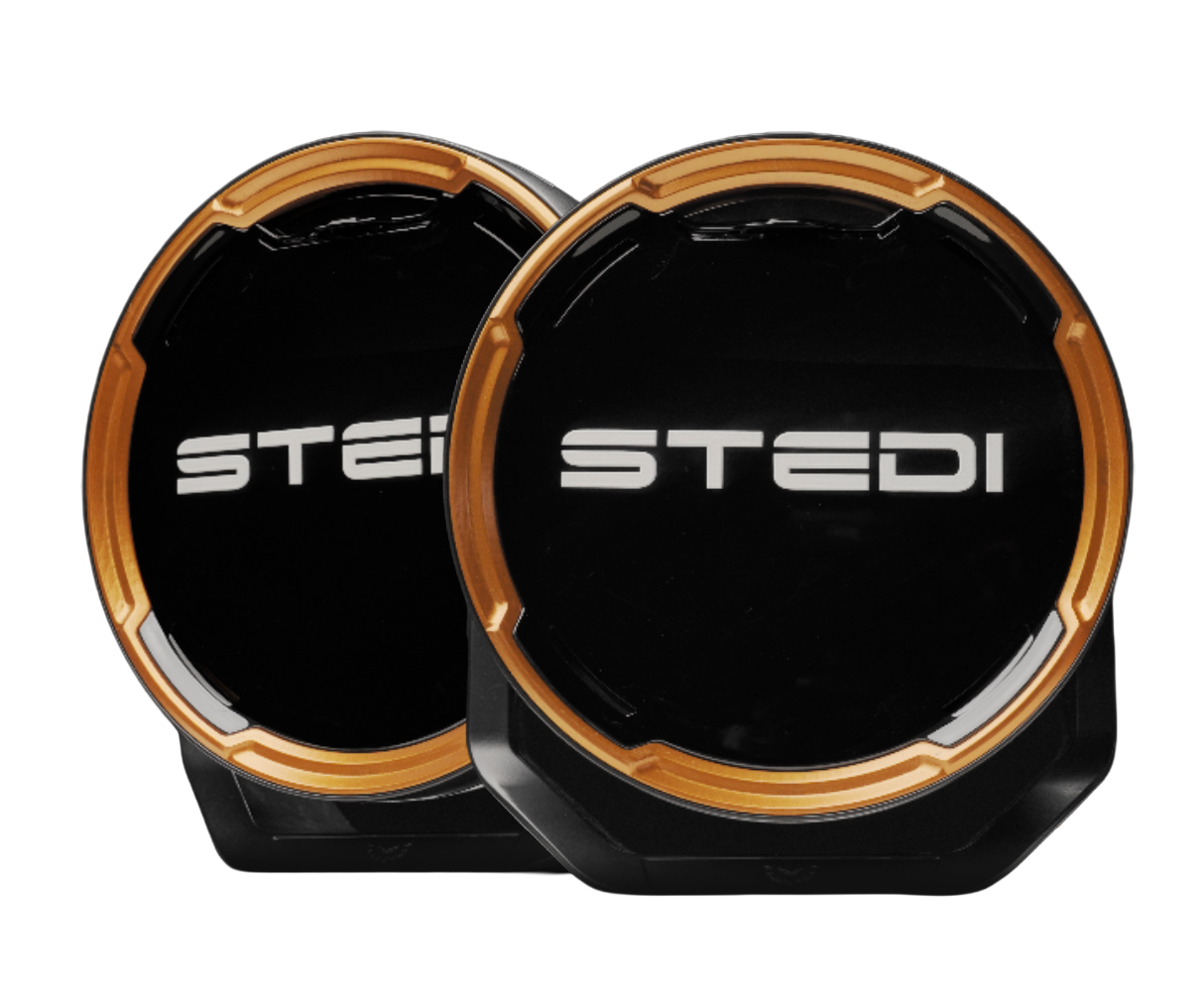

Modern Classic:

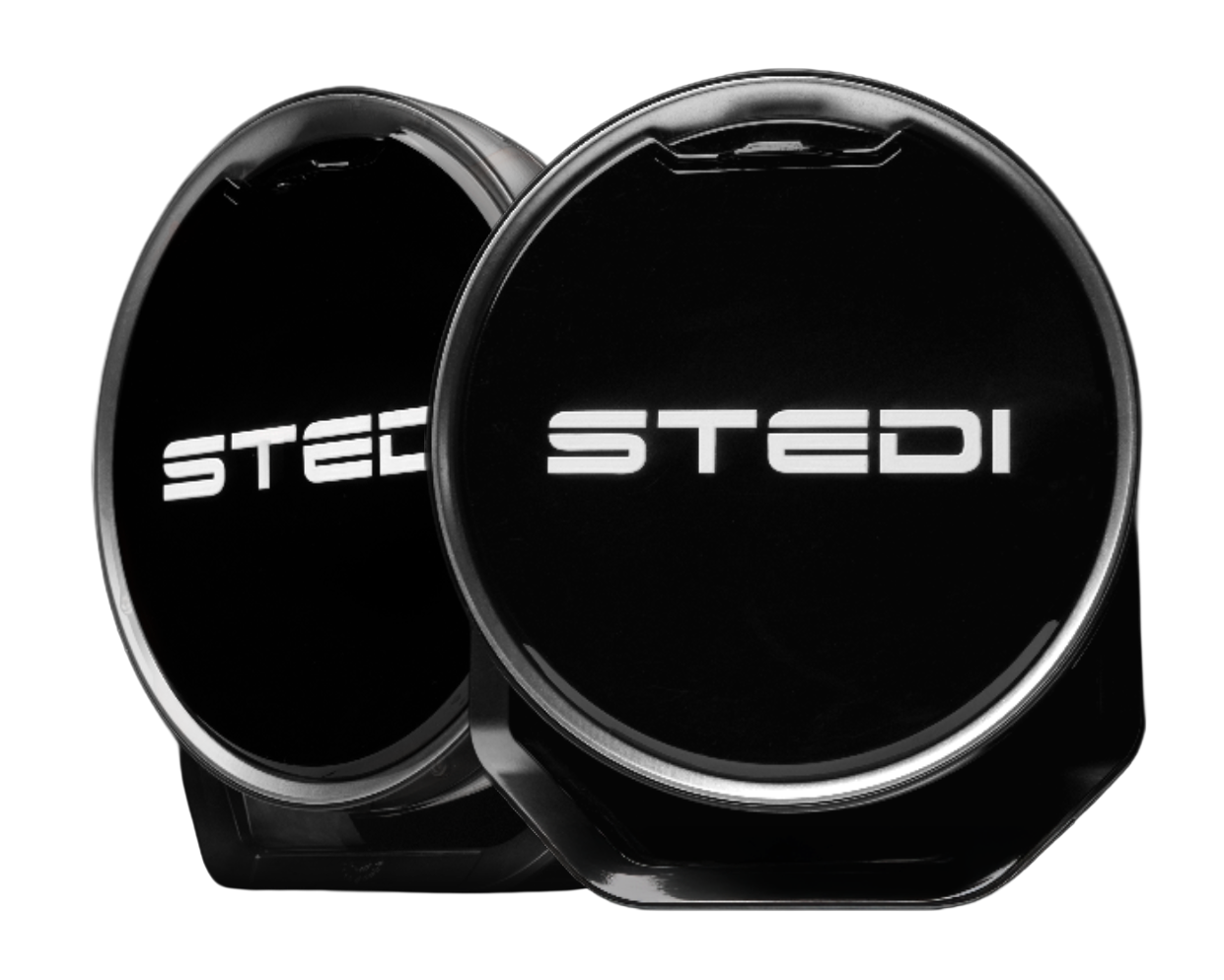

The Modern Classic option in the Type-X™ PRO PLUS range represents the pinnacle of sleek, minimalist design. Taking the refined aesthetic of the Modern option to the next level, this configuration introduces a more sophisticated cover for an elevated, streamlined appearance. Crafted with a focus on clean lines and timeless elegance, the Modern Classic option embodies the stylings of the modern age where minimalism reigns supreme.

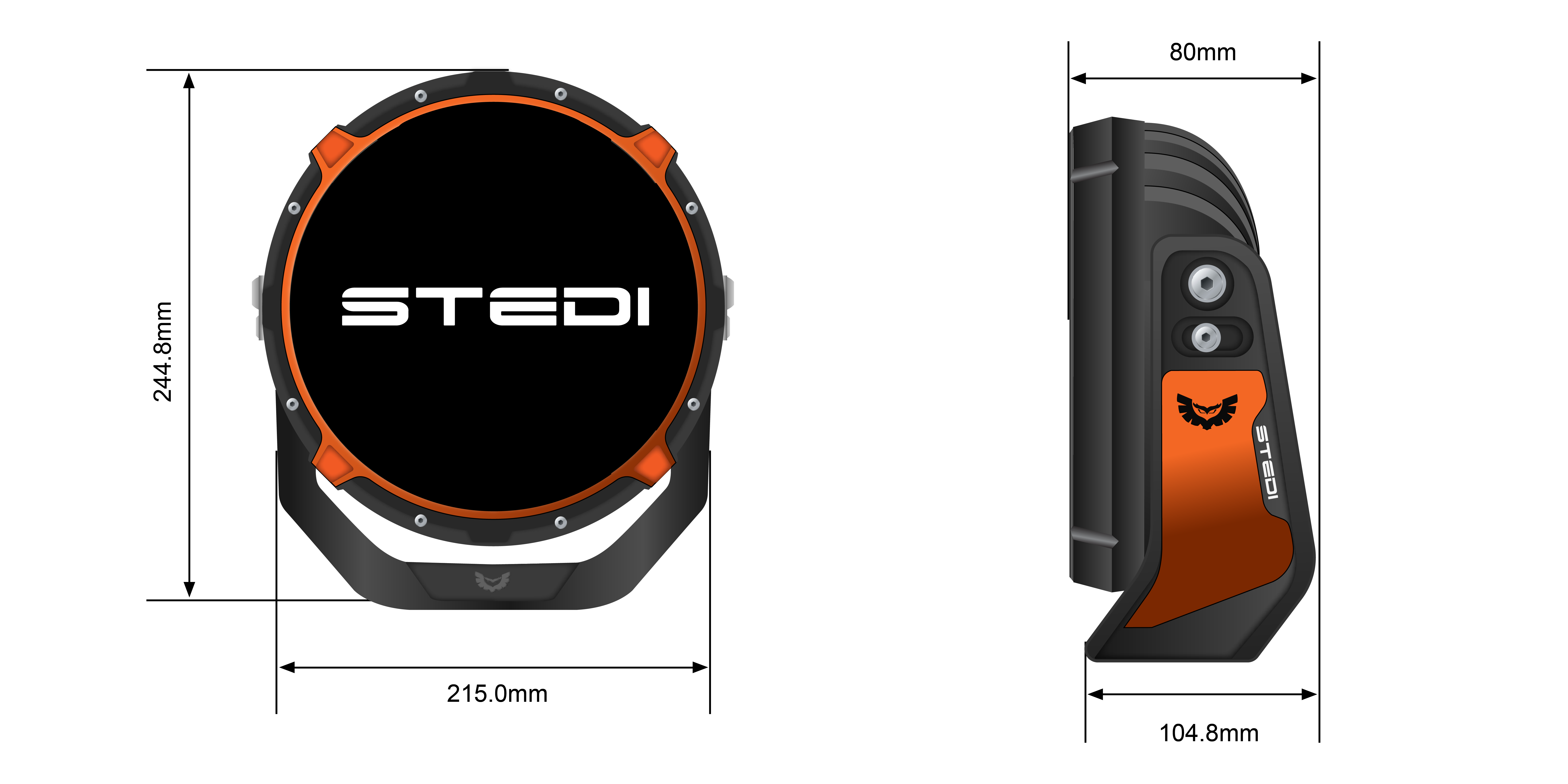

DIMENSIONS
DRL:
NON-DRL:

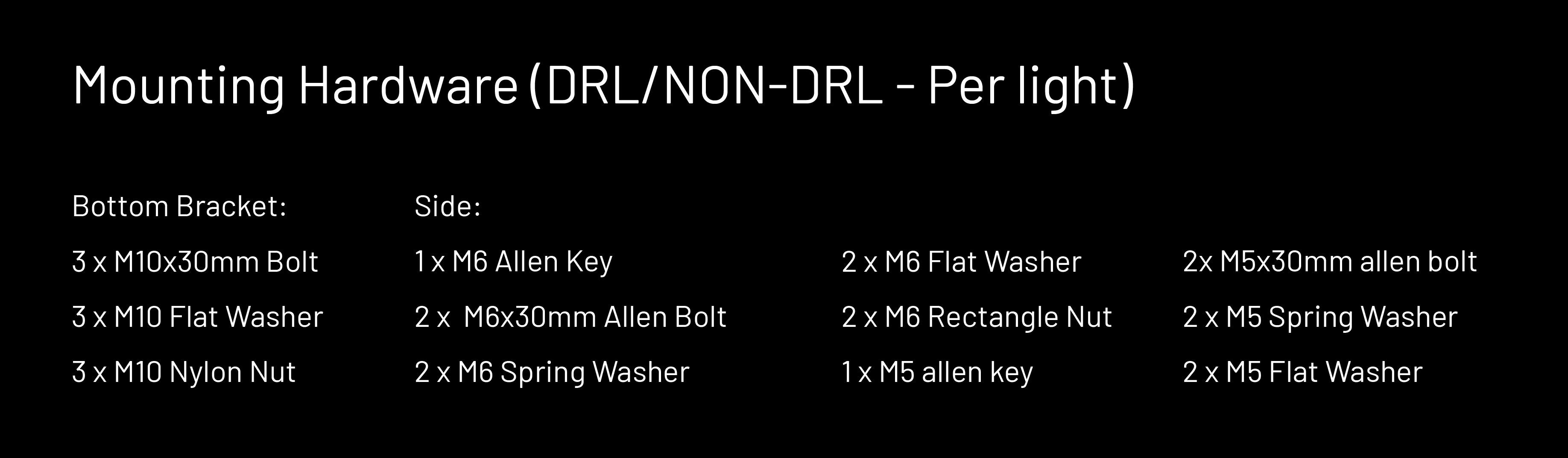

MOUNTING HARDWARE

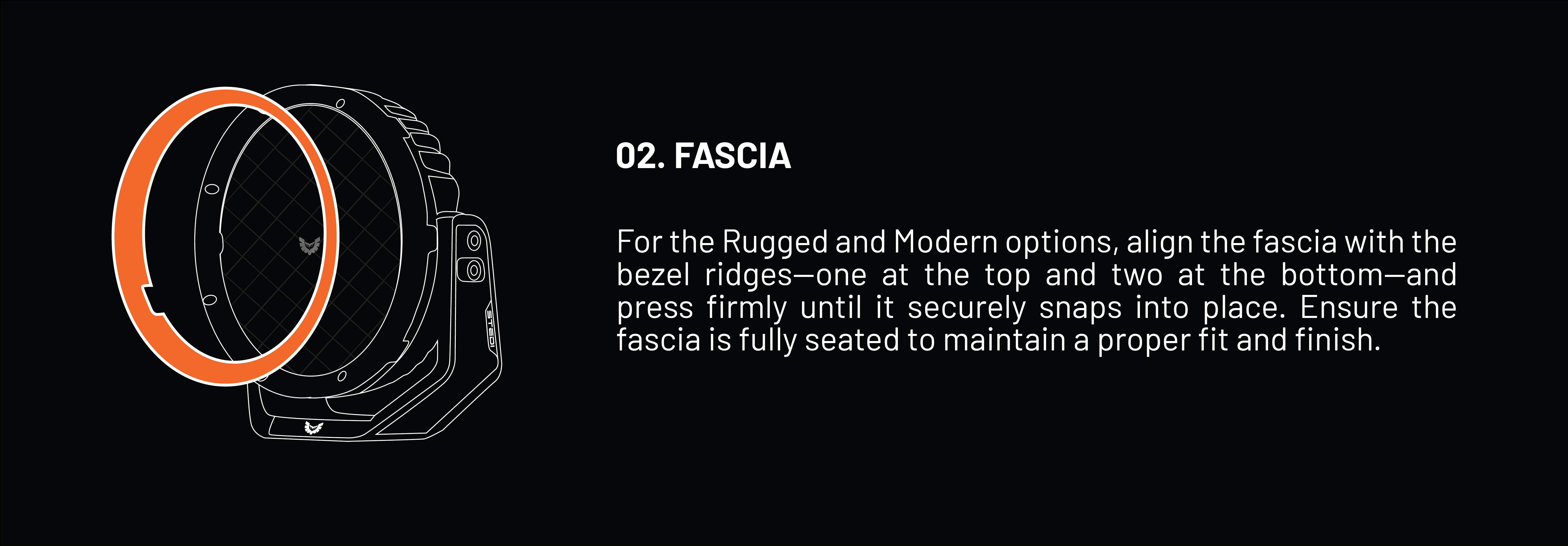

ASSEMBLY
Assembly is best described within the following diagrams.
Further explanation below
Further explanation below
Further explanation below
INSTALLATION

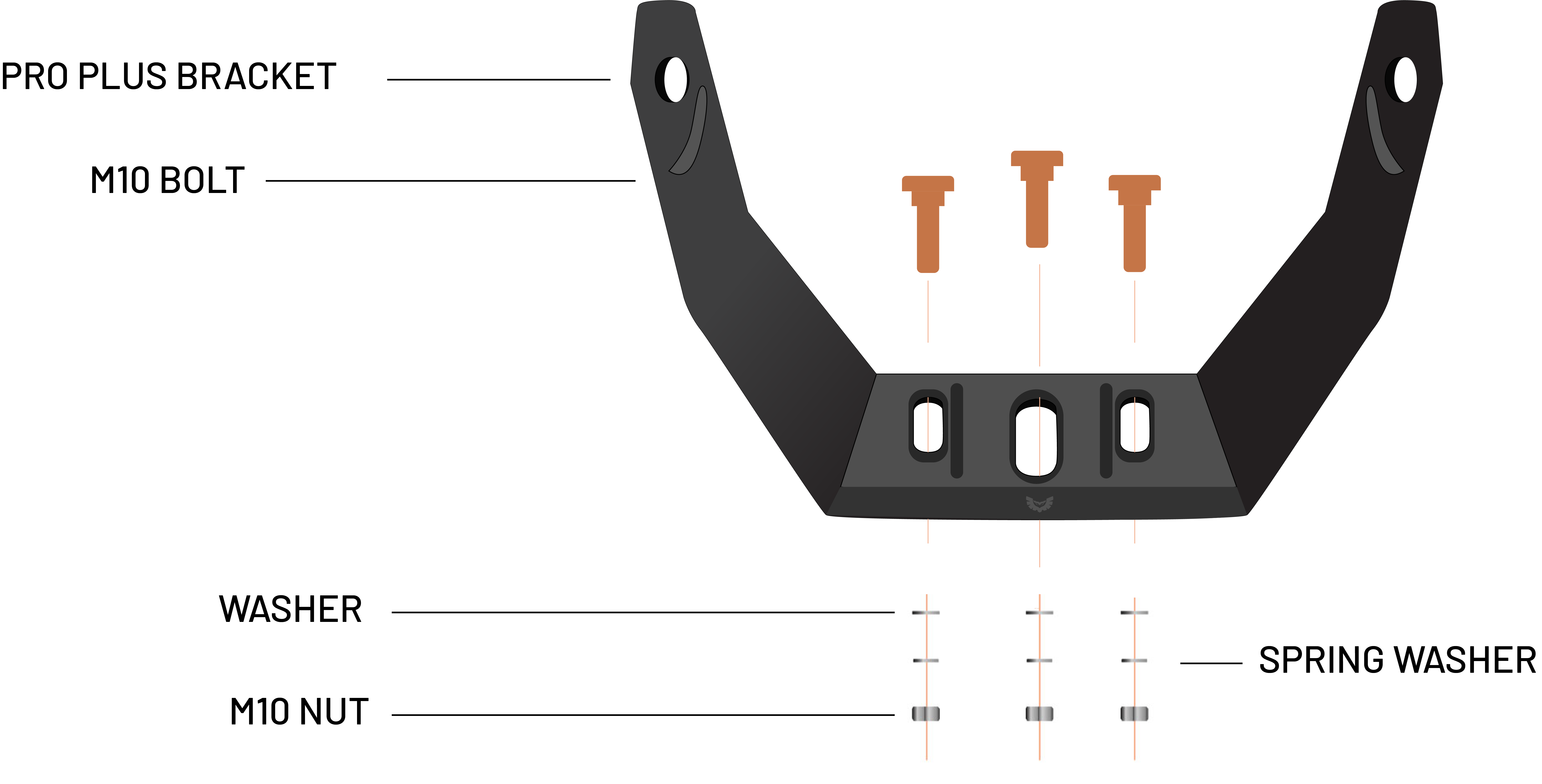

Type X™ Pro Plus Bracket Install
Offer the lights bracket into the position dropping the nuts through into your mounting platform. Achieving this next step is a little tricky but you will want to slip the washer, spring washer, and finally, the nut onto these bolts and secure tightly.
Type X™ Pro Plus Bezel Install

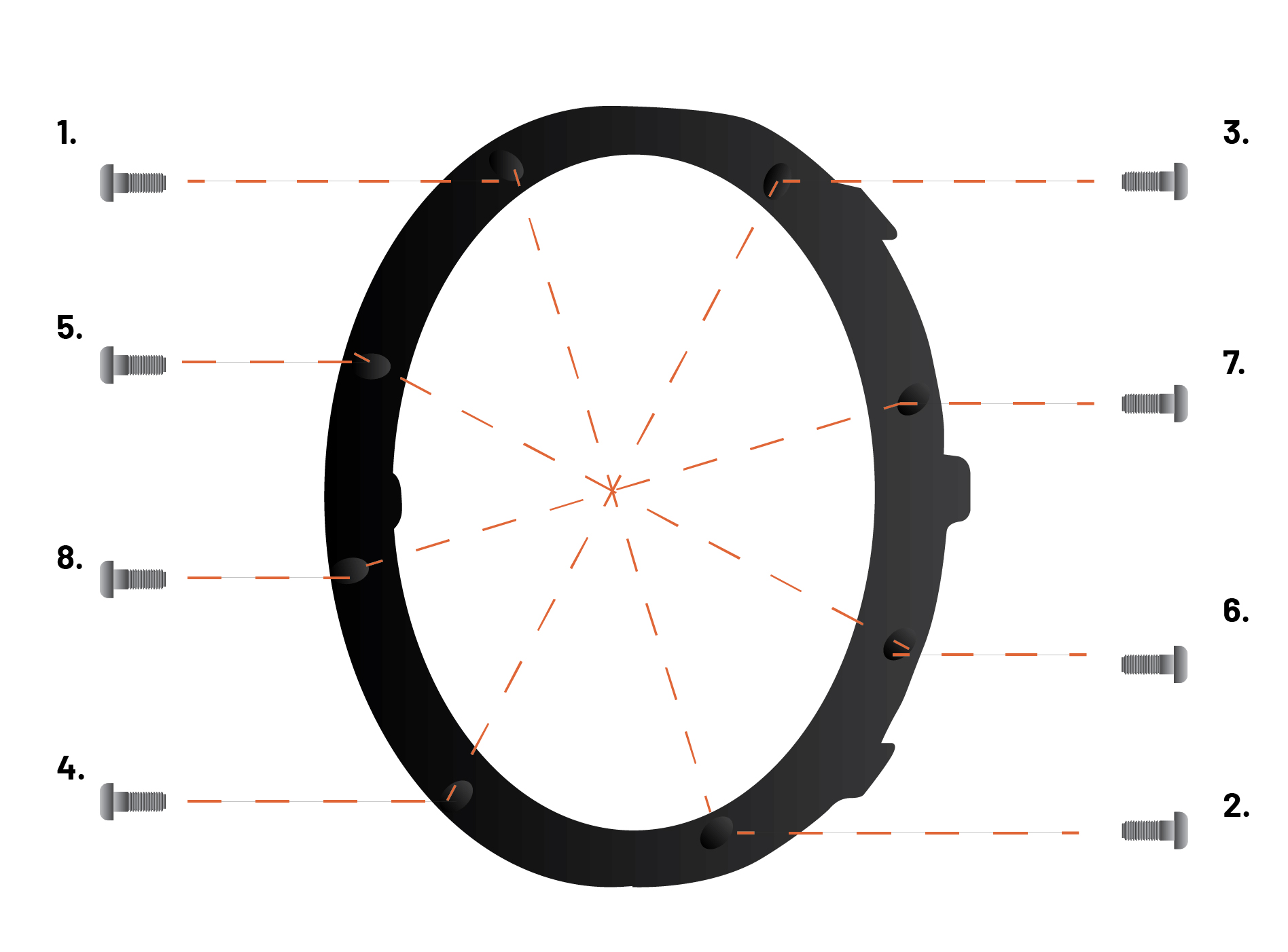

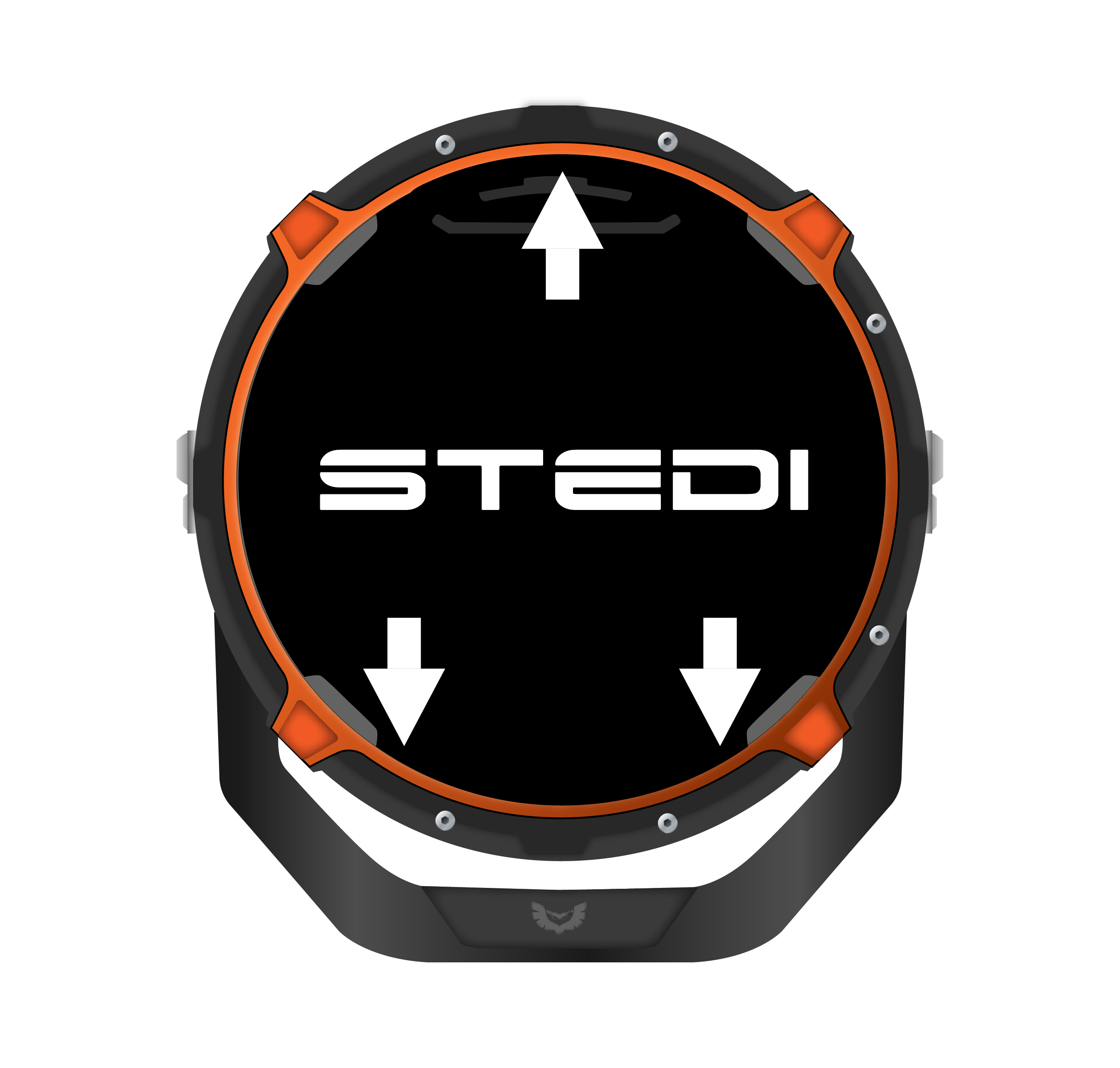

Align the bezel on the light by matching the single ridge at the top and the two ridges at the bottom with those on the back of the bezel. Loosely thread each bolt using the M3 allen key in a cross pattern (opposite bolts) to ensure even tightening. use the diagram above as a guide when tightening the bolts.

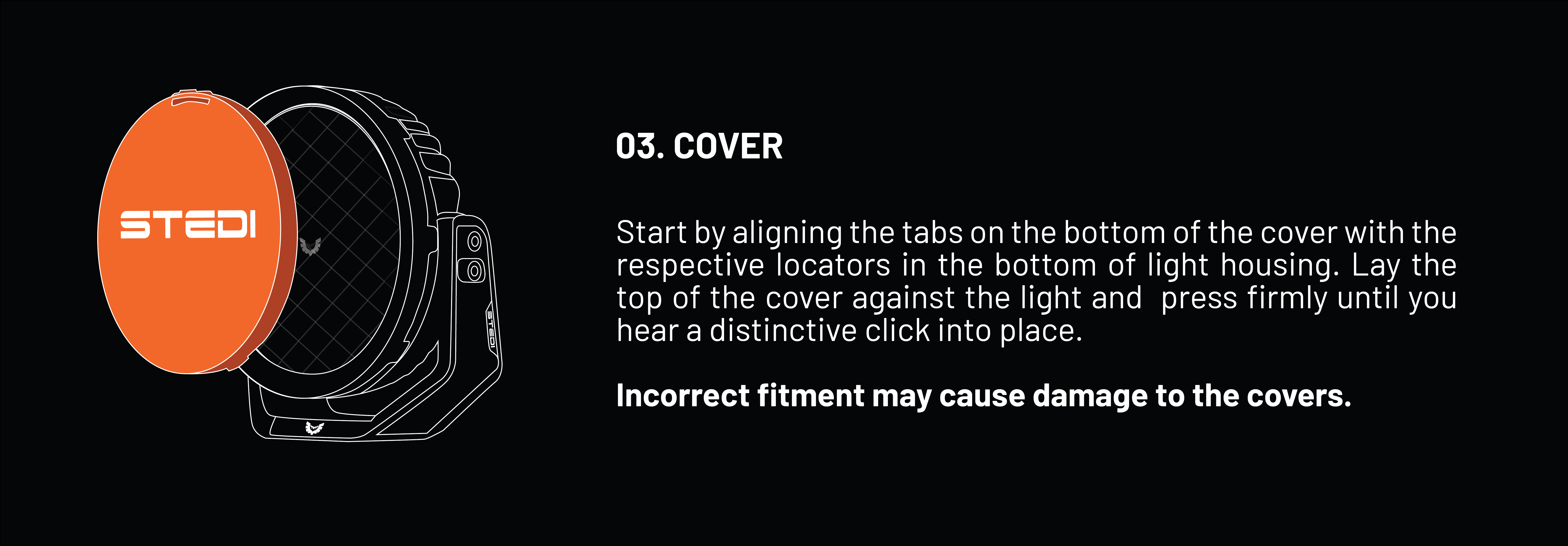

Type X™ Pro Plus Cover Install
STEDI™ has designed the covers to be firm fitting. The following dictates the correct way to install the covers. Incorrect fitment may cause damage to the covers. Start by aligning the tabs on the bottom of the cover with the respective locators in the light housing. Once these are in place, press firmly down on the top of the cover until it clicks into place. Removal of the cover is as easy as placing your thumb on the top tab, pushing down on the tab, and pulling out towards you.

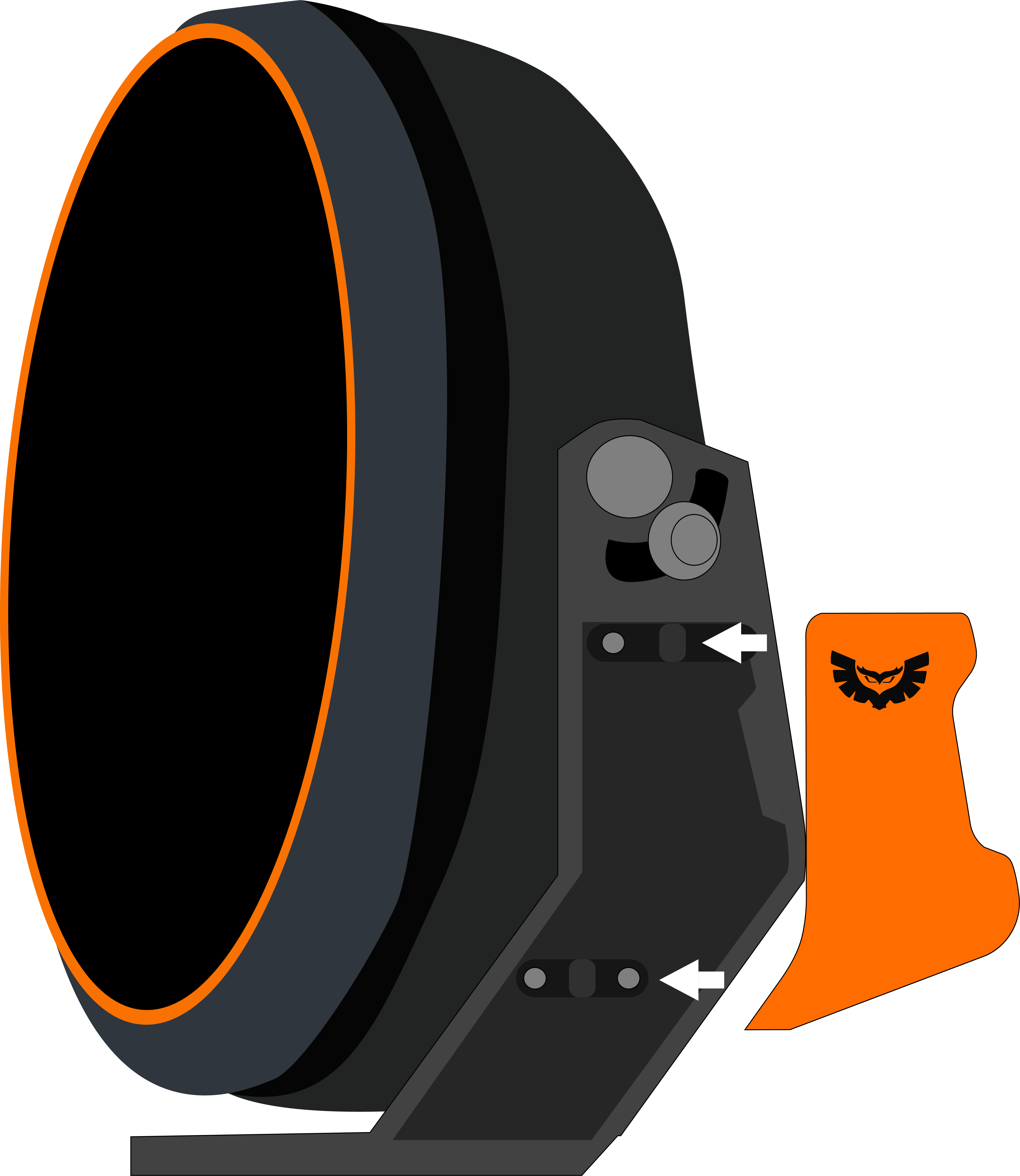

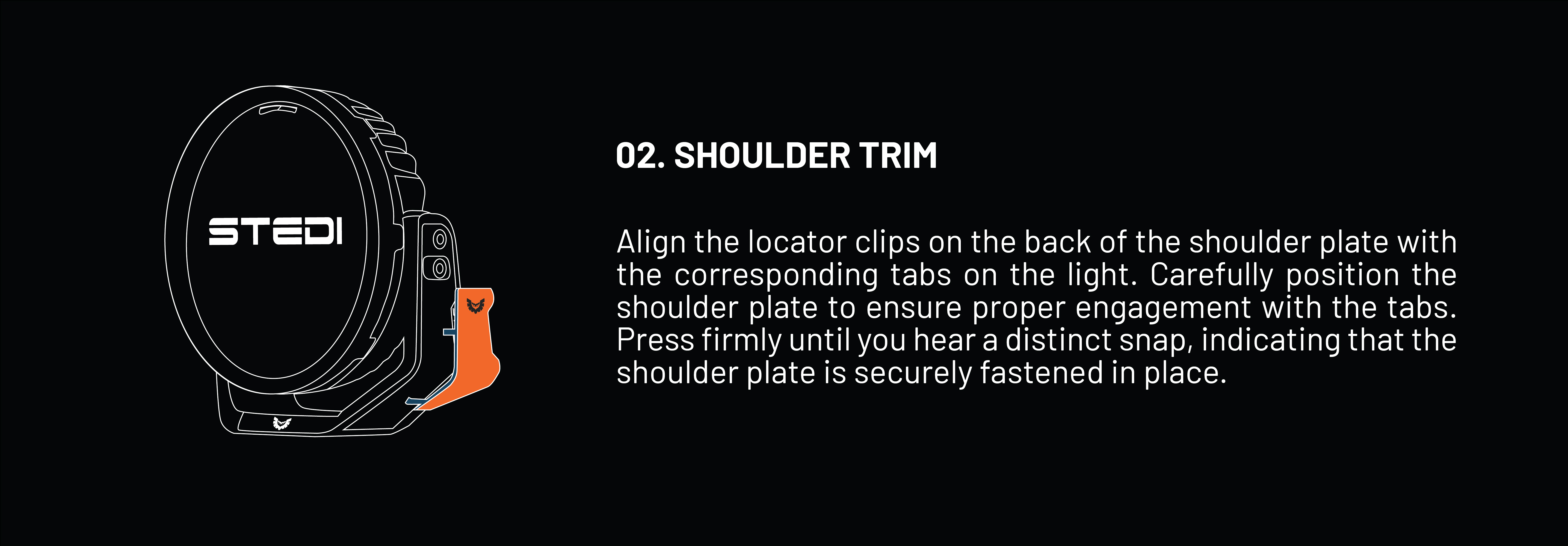

Type X™ Pro Plus Shoulder Install
Align the locator clips on the back of the shoulder plate with the corresponding tabs on the light. Carefully position the shoulder plate to ensure proper engagement with the tabs. Press firmly until you hear a distinct snap, indicating that the shoulder plate is securely fastened in place.
Please Note: The above install for the Shoulder Plates applies to both the Modern and Rugged Shoulder trim styles. When the Modern trim is installed, this covers all side bolts.
MOUNTING TO THE VEHICLE
IMPORTANT NOTES:
- All three M10 bolts must be used to mount the base of the U-Bracket to your vehicle. It is highly recommended that all the supplied hardware is used for the correct fitment of light.
- Before fitting stainless steel hardware, we recommend applying a small amount of anti-seize to the threads of any mounting bolts.
Installation is best described within the following diagrams.

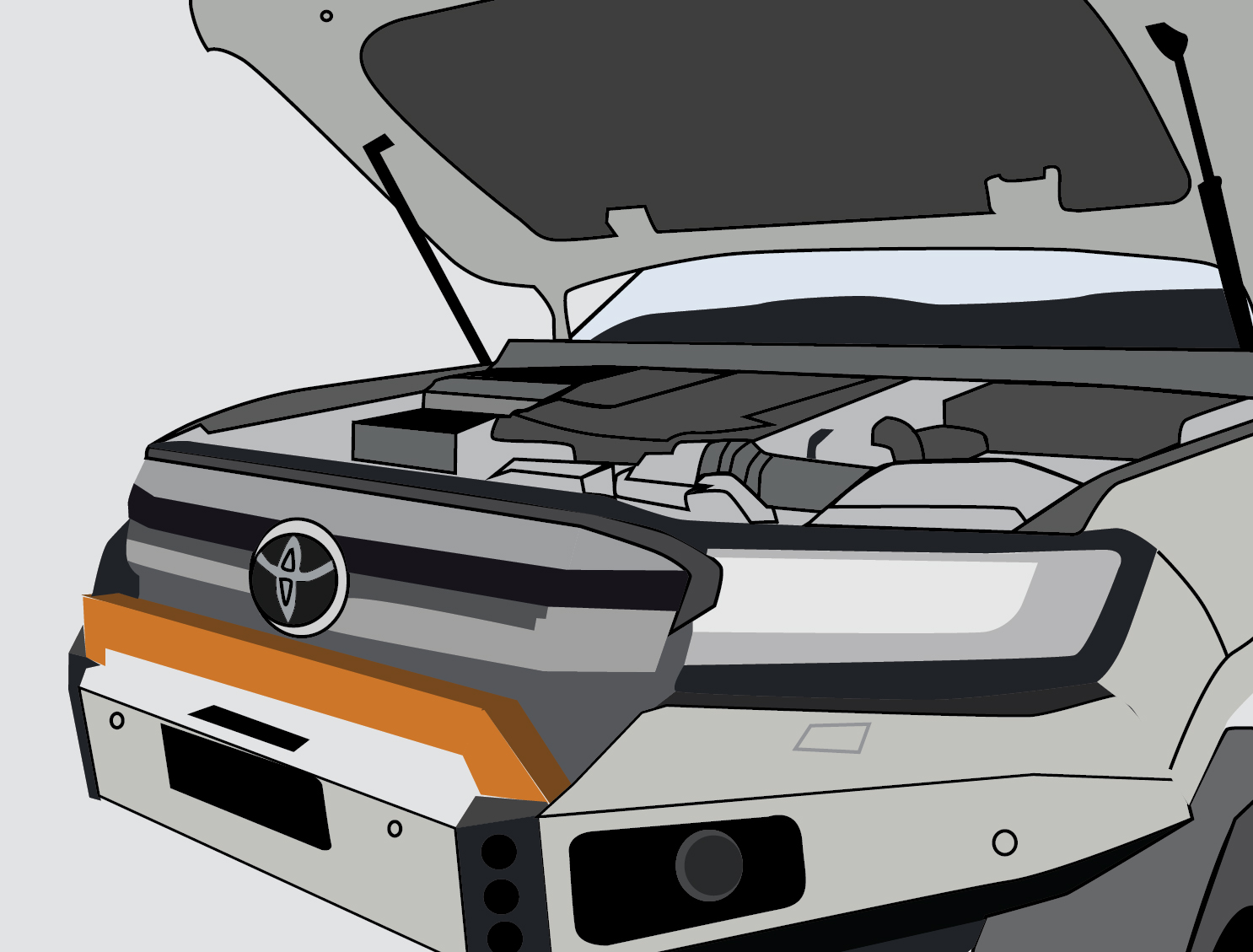

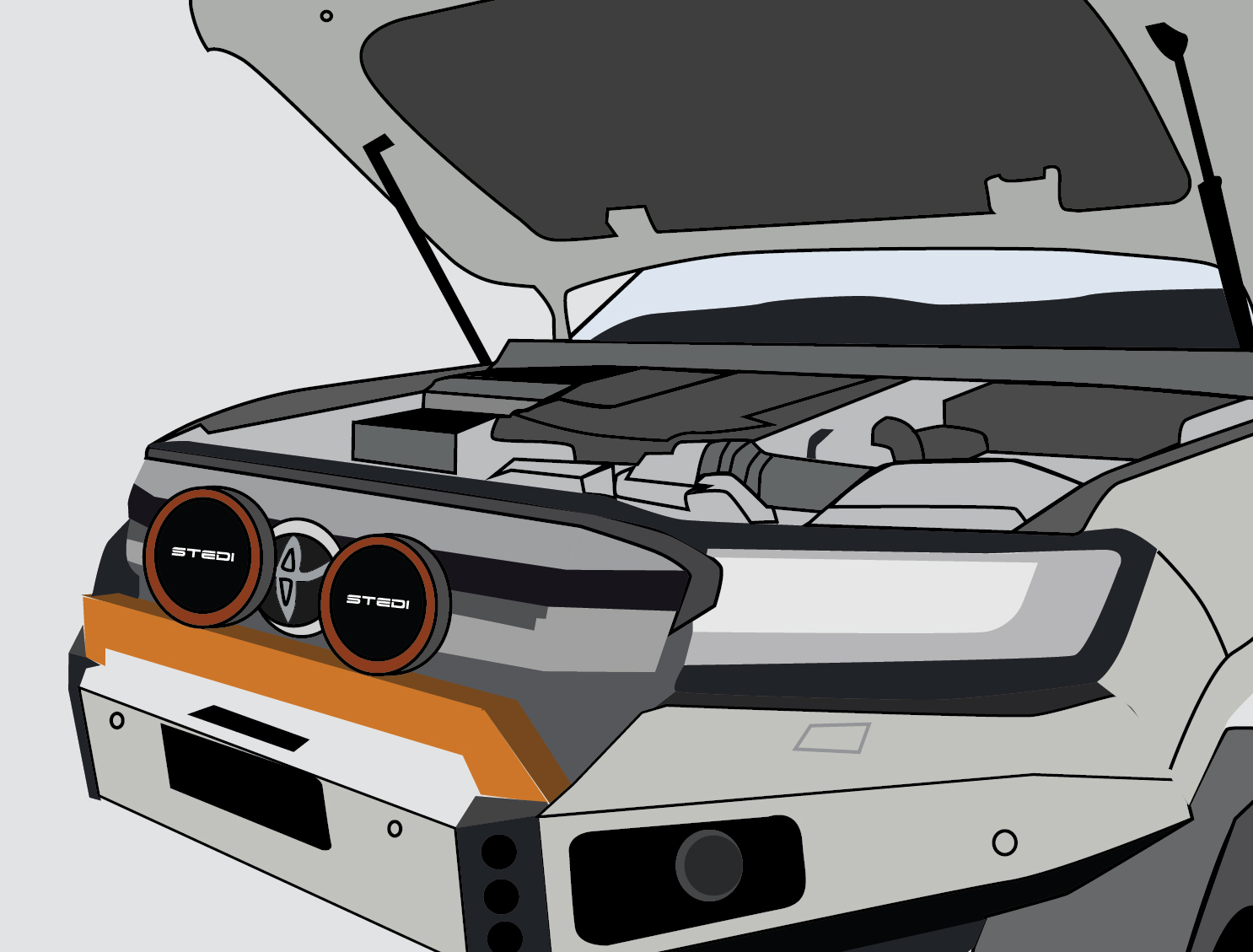

Begin by setting the light in the desired mounting position on the vehicle and roughly aiming the light within the bracket. Keep in mind that you will need to venture out at night along a straight flat road to properly align the light.
Ensure you consider the mounting position of your light as the base bracket holes will not suit all bull bar variants.
Depending on the install position and the available room to work with, some users may want to tighten down the position whilst access to the bolts is still accessible, however before you lock in the position, drop in the required amount of M10 bolts through the base of the bracket as certain aiming positions will obscure access to these holes.
Wiring:
Wiring Guide Pro Plus DRL
Wiring this feature of the light is OPTIONAL and does not affect the brightness of the lights at night.
1. To power the additional DRL Feature on the Type-X™ Pro Plus Driving Lights, you will need to identify the vehicles constant power source circuit in the vehicle you intend the DRL to be powered from.
2. Once you have identified your constant power wire, attach the blue DRL Hi wire to it. This will allow the high brightness DRL mode to illuminate when this circuit is "live" (powered on).
3. If you wish the DRL to be able to swap to a Low brightness setting, connect the white DRL Lo wire to your Vehicle’s power circuit that you wish the low beam mode to override the high beam active setting on.
Please Note: if you only wish the low DRL mode to work, the DRL high wire does not need to be attach.
Please Note: if you do not want the DRL low function to work you do not need to attach the DRL low wire.
It may also be work checking with your local state regulations to confirm legalities of installation.
OPTIONAL ACCESSORIES
Each configuration's Bezel, Covers, Fasia, and Shoulder Plates are all able to be purchased individually. This allows you to modify your light post purchase. For the full range of optional configurations please refer to this section of the Help Centre.
ANTI THEFT:
It’s true, our STEDI™ spotlights are highly sought after and are prone to be snatched up. Luckily, we have designed an Anti-Theft Kit to keep your spotlight safe from theft. Our Anti-Theft kits are pre-configured to suit the STEDI™ Type-X™ Pro Plus LED Driving Lights. This easy-to-assemble kit will greatly reduce the risk of theft & tampering.
SPARE PARTS:
We understand that over time, even the best gear can need a refresh. That’s why our Type X Pro Plus Spare Parts listing offers all the essential components you need to keep your lights performing at their best—whether you need the hardware kit, the Pro Plus bracket, or a replacement lens.
MULTI-PURPOSE KEY
Included with each Type-X™ Pro Plus is a custom key that effortlessly removes the supplied colour fascia, while conveniently doubling as a bottle opener for all your outdoor adventures. Simply find the rubber end and position. This product can be purchased separately if misplaced. For more information, please visit your local authorised STEDI dealer or visit stedi.com.au
