TYPE-X™ Sport Plus

NOTE: The following installation instructions apply to both our Type-X™ Sport Plus 8.5" and 7" driving lights.

IMPORTANT NOTES:

• All three M10 bolts must be used to mount the base of the U-Bracket to your vehicle. It is highly recommended that all the supplied hardware is used for the correct fitment of light.
• Before fitting stainless steel hardware, we recommend applying a small amount of anti-seize to the threads of any mounting bolts.

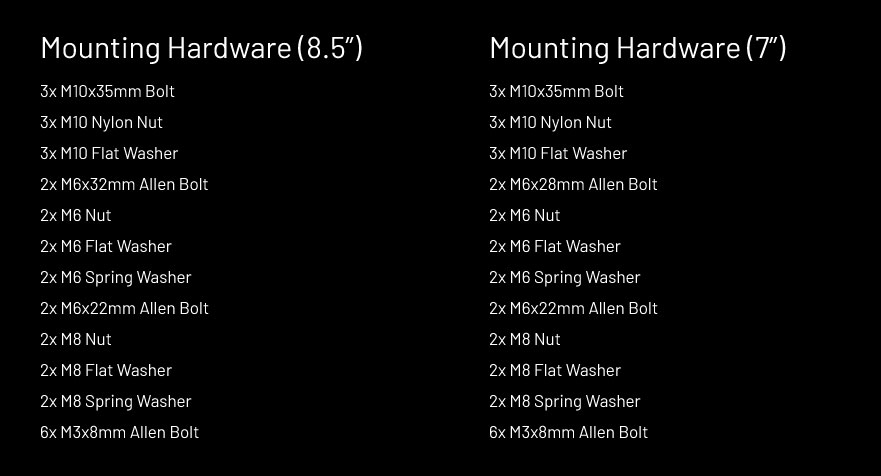

MOUNTING HARDWARE

INSTALLATION

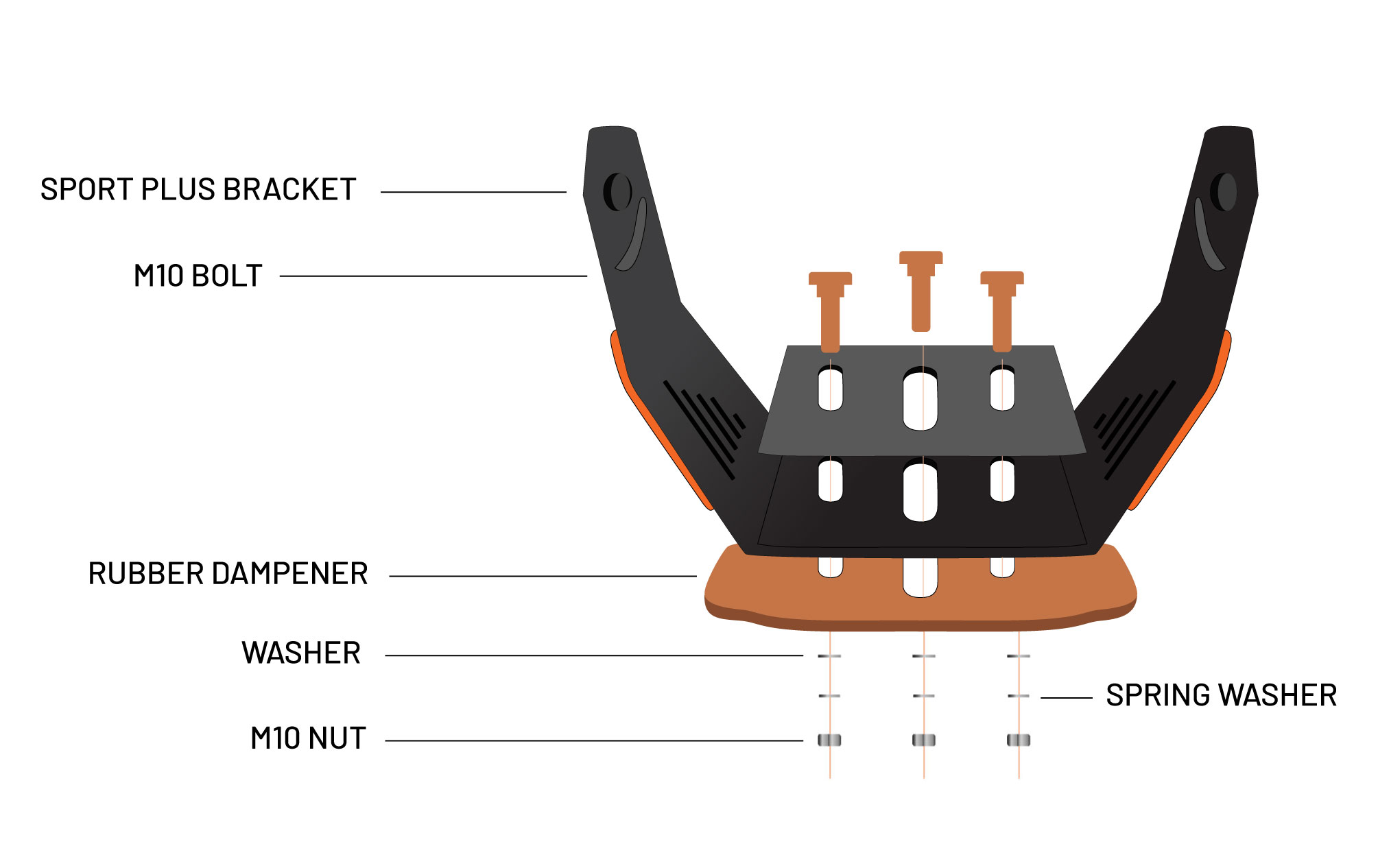

Installation is best described within the following diagrams.

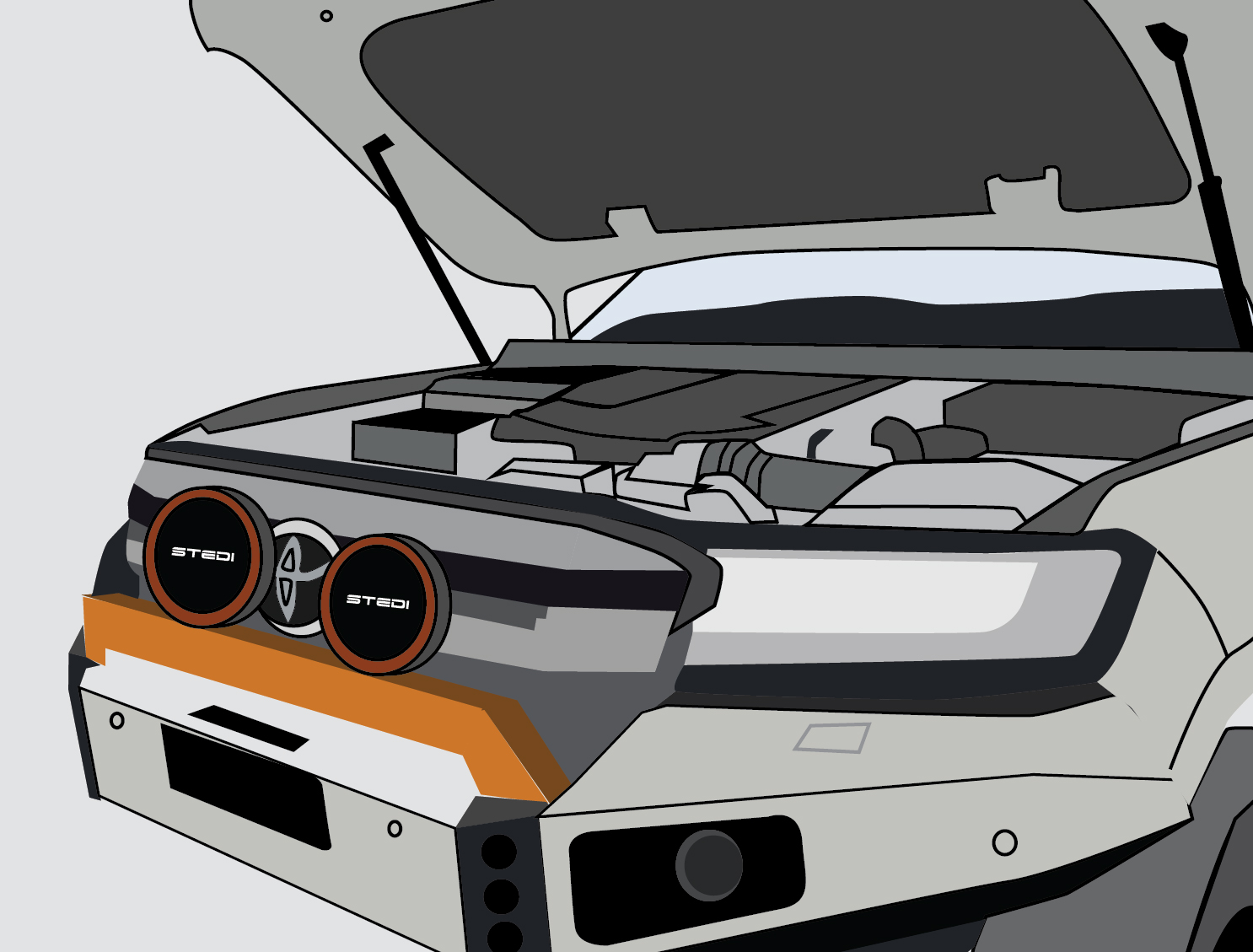

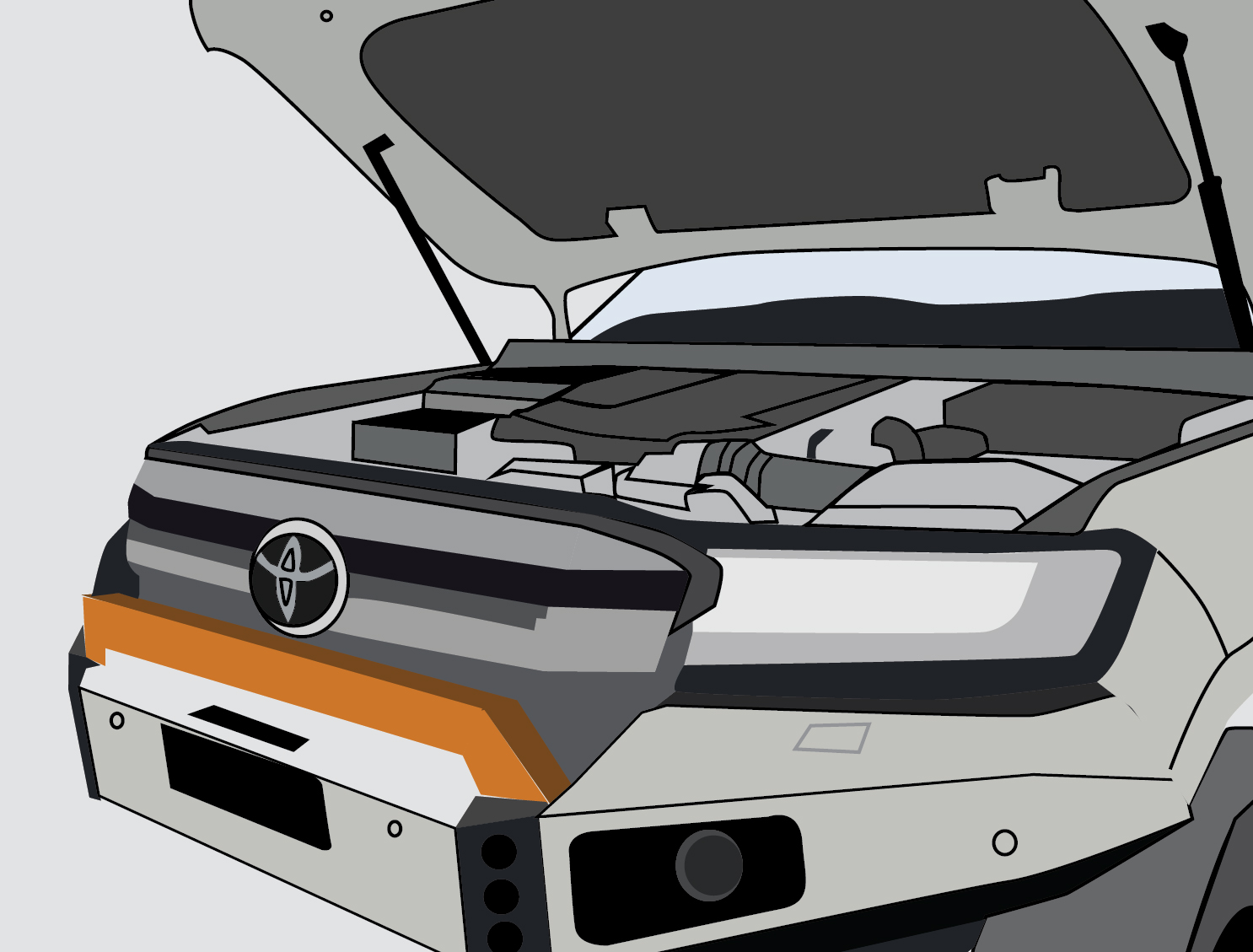

Begin by setting the light in the desired mounting position on the vehicle and roughly aiming the light within the bracket. Keep in mind that you will need to venture out at night along a straight flat road to properly align the light.

Ensure you consider the mounting position of your light as the base bracket holes will not suit all bull bar variants.

Depending on the install position and the available room to work with, some users may want to tighten down the position whilst access to the bolts is still accessible, however before you lock in the position, drop in the required amount of M10 bolts through the base of the bracket as certain aiming positions will obscure access to these holes.

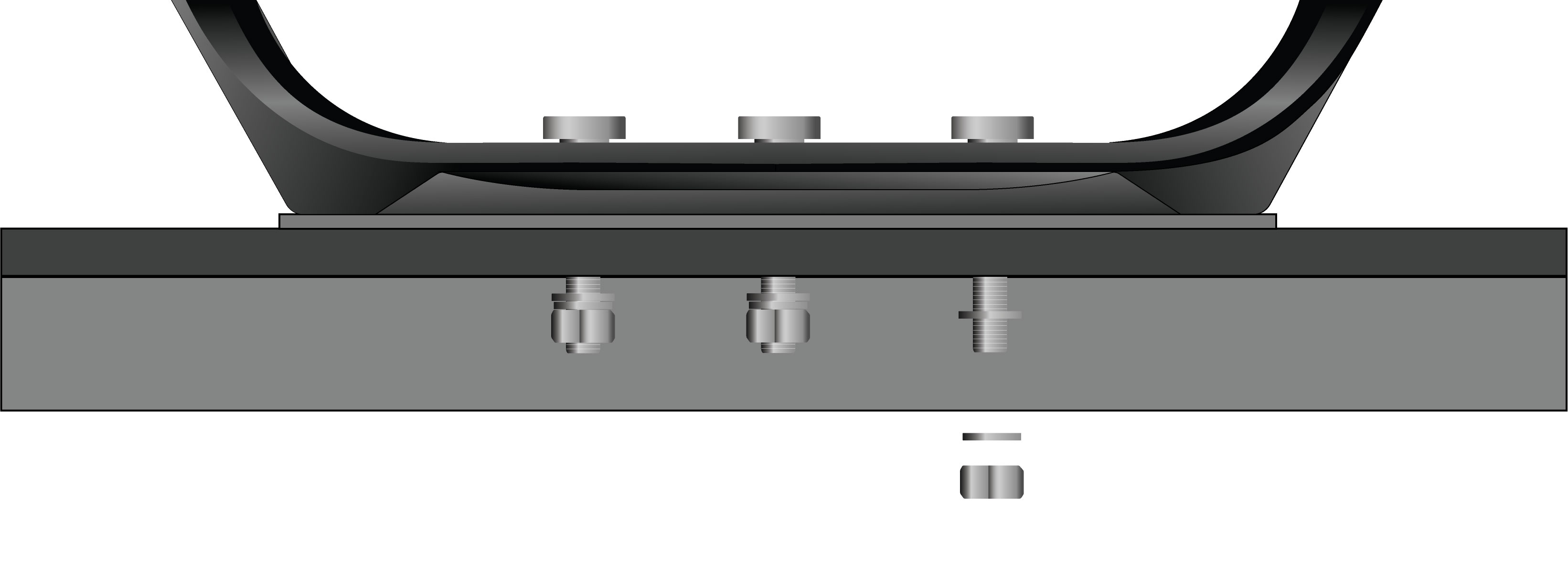

Offer the light with the rubber dampener underneath the lights bracket into the position dropping the nuts through into your mounting platform. Achieving this next step is a little tricky but you will want to slip the washer, spring washer, and finally, the nut onto these bolts and secure tightly.

When mounting to the desired application, the order of the hardware is as follows, Bolt > Bracket > Rubber Dampener > Mounting Platform > Washer > Nut

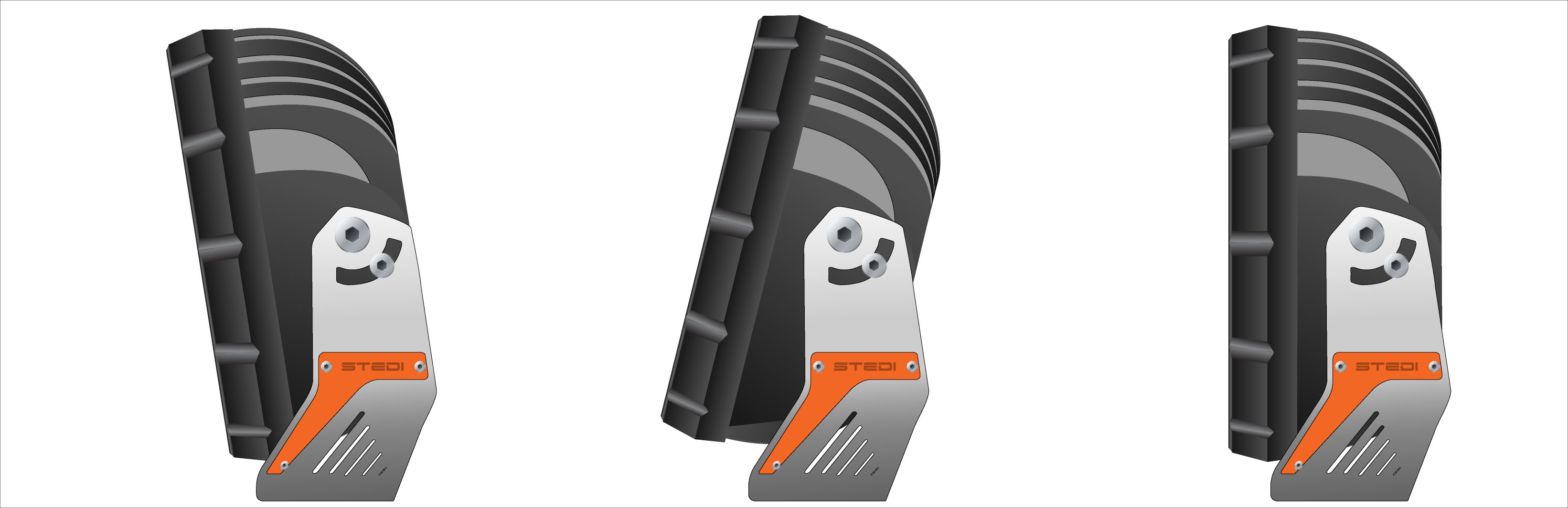

When adjusting the angle of the lights, make sure to have the bolts loose enough so that with a slight force they can be tilted & holds position but not enough so that the light swings freely. Once the ideal position is achieved, tighten all bolts firmly.

Type X™ Sport Plus Cover Install

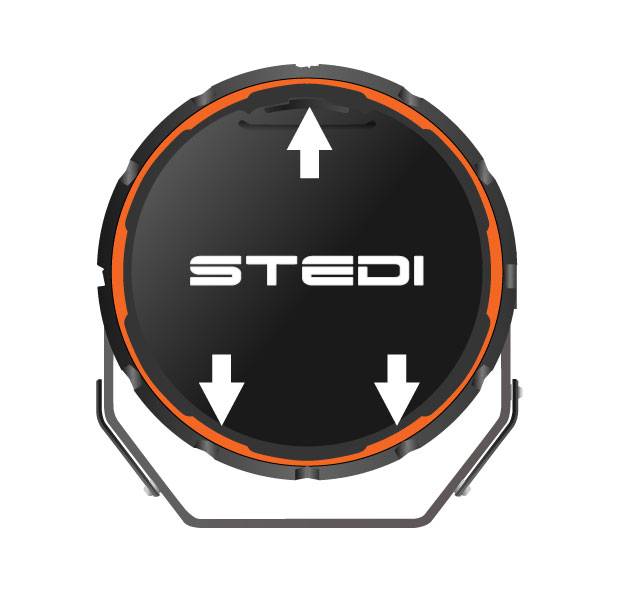

STEDI™ has designed the covers to be firm fitting. The following dictates the correct way to install the covers. Incorrect fitment may cause damage to the covers. Start by aligning the tabs on the bottom of the cover with the respective locators in the light housing. Once these are in place, press firmly down on the top of the cover until it snaps into place. Removal of the cover is as easy as placing your thumb on the top tab, pushing down on the tab, and pulling out towards you.

Type X™ Shoulder Plate Install

There are two variations in colour for the Shoulder Plate supplied in the box.

1. Orange Shoulder Plate

2. Grey Shoulder Plate

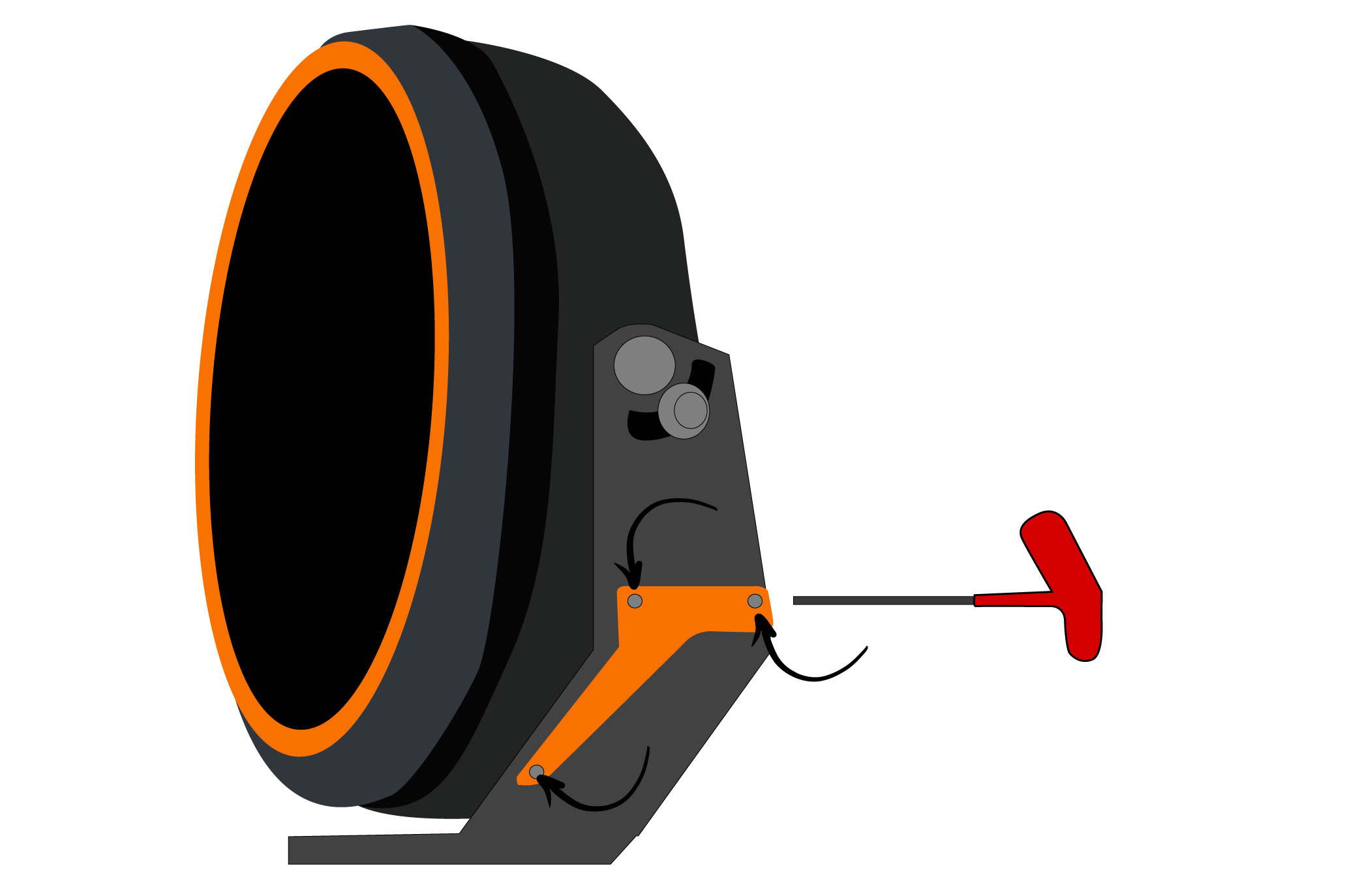

When removing the Shoulder Plate, there are 3 M3x8mm Allen bolts that must be removed using the supplied allen key. Then the desired colour of Shoulder Plate can be installed using the same M3x8mm Allen bolts.

OPTIONAL ACCESSORIES

NOTE: The following accessories are not cross compatible between the Type-X™ Sport Plus 8.5" & 7" Driving light. Please make sure you check compatibility before purchasing.

SMILEY COVER:

Our initial launch will include the standard blackout covers such as the standard STEDI™ included in the box. You can additionally purchase the STEDI™ Smiley Cover through our website.
