ST2K Touch Series Light Bar Guide

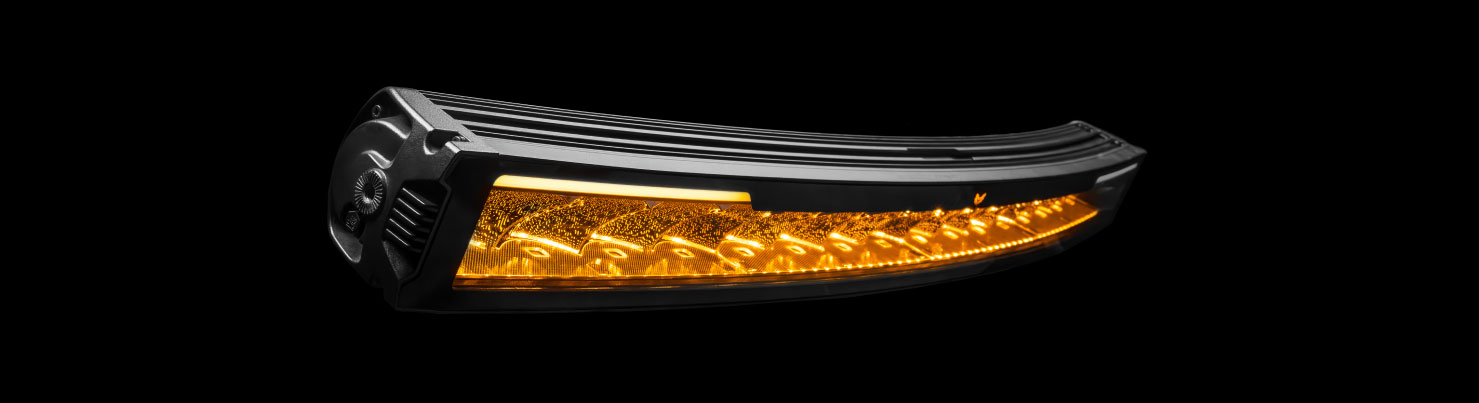

Crafted to perfection, the STEDI™ ST2K Touch LED Light Bars promise a potent flood beam alongside a steadfast spot, ensuring every inch of your journey is bathed in brilliance. Seamlessly integrating with pre-existing driving lights, the STEDI™ ST2K Touch LED Light Bars extend off the shoulders of the road, illuminating the critical zones with precision. With a simple touch, you can experience the magic of its captivating DRL, switching from pure white to a warm amber, effortlessly adjustable to suit your mood and environment. Available in 40" 50".

The STEDI™ ST2K Touch Light Bars come with side brackets, sliding brackets are available separately. Below is a brief run-through on both mounting styles to help you through installation of your ST2K Touch Light Bar.

Mounting Applications

Side brackets (Included):

Assembly

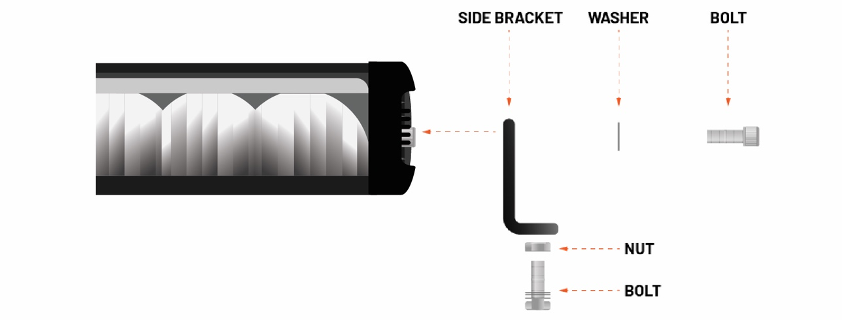

Each ST2K Light Bar comes with a pair of Steel Side Brackets. See bracket mounting instructions below:

Sliding Brackets (Sold Separately):

Please Note: The Sliding Brackets are an additional product that are not included when purchasing any models of the ST2K Touch Light Bar.
STEDI™ Lower Sliding Bottom Bracket for ST3303 Pro & ST2K LED Light Bars

Assembly

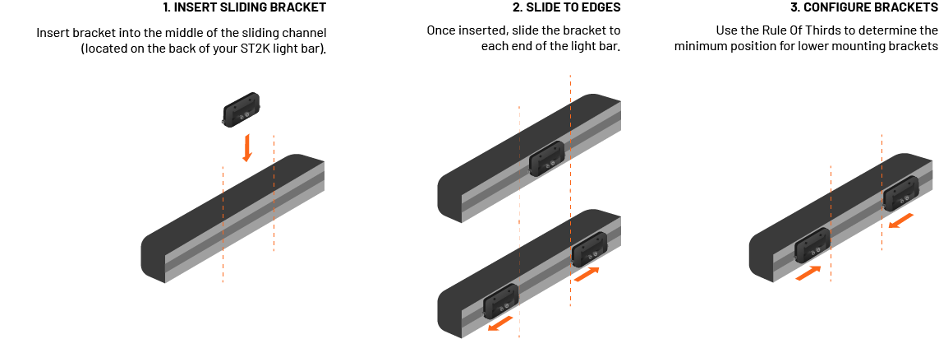

The bracket is easiest assembled prior to installation. Using the wider opening in the channel of the light bar, insert the bracket and slide to the desired position for mounting. Once the bracket is in position, tighten down the 2 cap screws to the locking plate firmly to secure the position in the channel.

Sliding Bracket Installation:

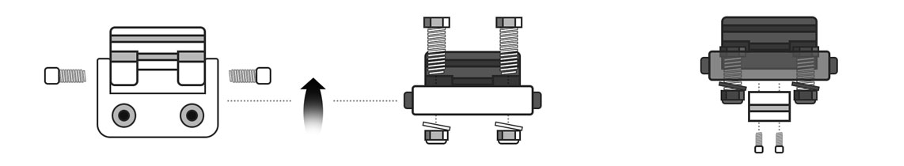

Please Note: When installing the sliding bracket into the light, the foot may need to be rotated so the lobe clears the opening. Alternatively, the bracket can be assembled once the track insert is on the bar. Once the bracket is fitted and the light is angled to the desired position, tighten the 2 locking grub screws on each side of the brackets to secure the light firmly.­

The ST2K Touch has a daytime running light feature that is switchable between white and amber DRL using the touch function. The plug on this light bar has three wires coming from the plug junction.

Wiring:

To wire up the DRL function of the ST2K Touch, connect the WHITE to a +12V signal this can be a PARKER or DRL signal from the vehicle. This will allow control of the DRL colour to be switched via the touch pad on the side of the light.

To control the DRL via an in-cabin switch, connect the YELLOW wire to an applicable switch (switch not included)

WHITE: White/Amber DRL via the Touch pad on the side of the ST2K Touch

YELLOW: Signal wire for DRL control via In cabin switch

BLUE: Connect this wire to a Positive 12V source to activate E-Mark Compliance mode.

• This will reduce the light intensity required in certain European countries.
• Please Note: For maximum performance, do not connect this wire

Common places to pick up the 12v signal are

• Parkers
• Ignition (try picking it up at the windscreen wiper motor)
• An existing DRL on the vehicle

Touch Functionality:

.

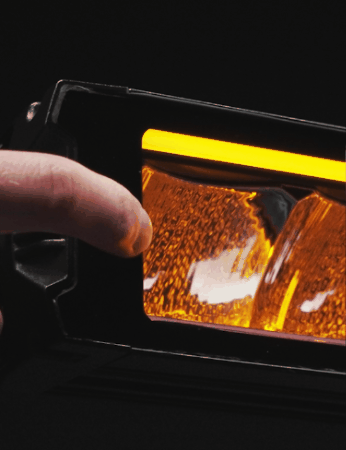

The image above illustrates the touch functionality in operation.

Please Note:

(circle on lens not shown in above image as it was an early sample and did not include it)

DRL:

To engage the ST2K Touch’s DRL with the new Touch feature, see steps below.

1. Make sure the ST2K Touch Light Bar wiring is fully installed to the vehicle via wiring harness and that the White 12v Lead (utilized for the DRL) is properly integrated into a vehicle system.
2. Engage the vehicle electrical system by either: A) Turning the vehicle on by starting the engine or B) Triggering the electrical system by turning the key in the ignition to the point where the vehicle systems turn on.
3. Using your finger, press the Touch element, located on the left side of the ST2K Light Bar (driver’s side).
4. When pressing the touch element, do not hold down, a simple 1 second press of the touch element, will engage the DRL.
5. Tap and hold once to engage the White DRL
6. Tap and hold again, to engage the Amber DRL.

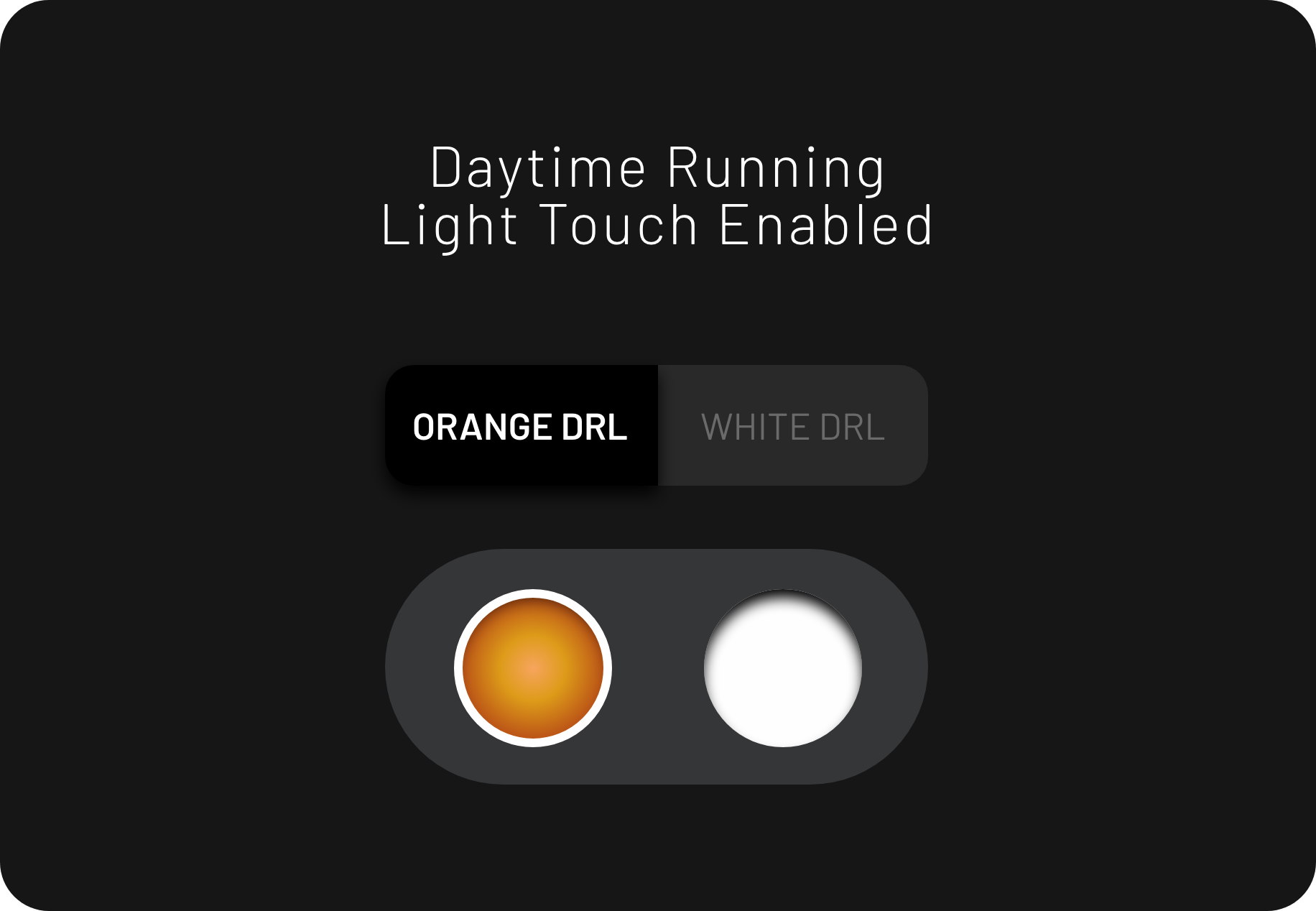

7.  To alter the colour of the Daytime Running Light (DRL), simply touch the circle to the left of the lightbar lens. This will change the colour from a cool 5700K to a warm 1500K.
