Next-Gen Ford Ranger & Everest High-Beam Adaptor Installation

Our new piggyback adaptors specific for Next-Gen Ford Ranger and Everest provide a hassle-free installation for any of our driving light harness kits allowing you to trigger your auxiliary lighting from your vehicle's high beam.

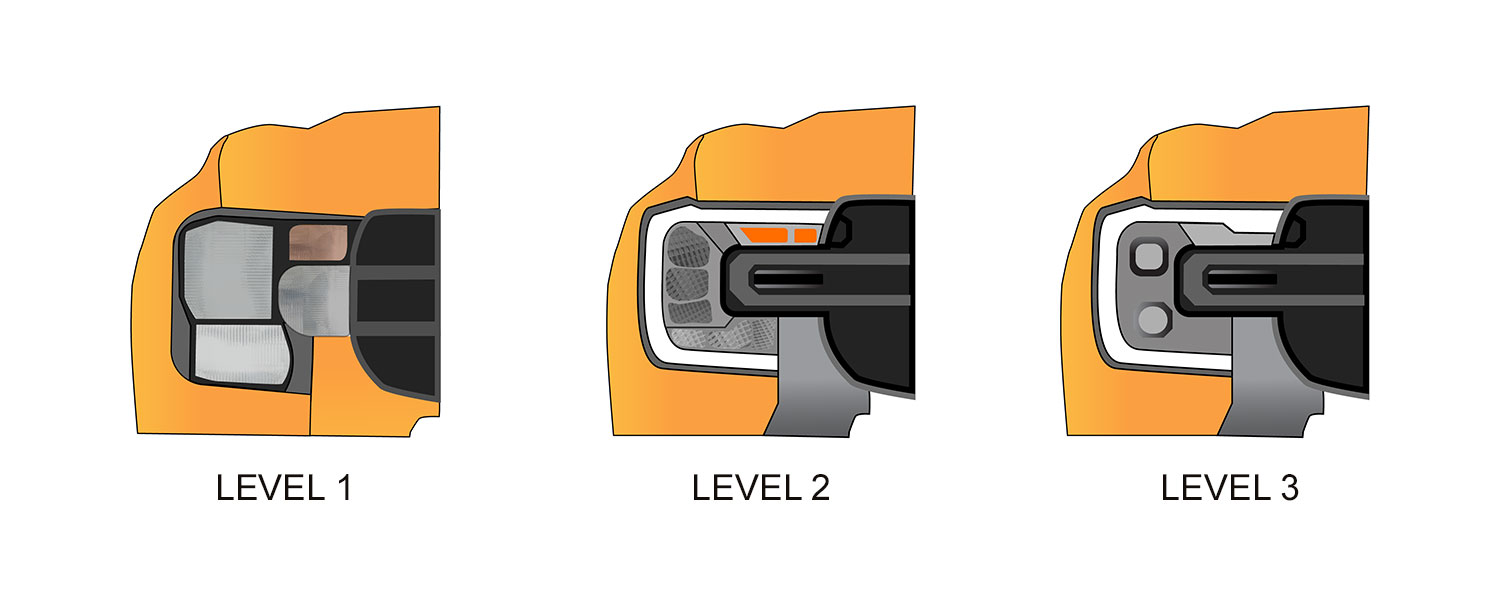

Due to differences in headlight configurations across the new Ford Ranger & Everest models, the high-beam trigger is wired differently depending on your trim-level of your vehicle. To identify your trim level please see our Ford Next Gen Everest & Ranger high beam pick-up article.

Levels 1 & 3

1. Locate the headlight harness at the passenger-side headlight unit.
2. Plug the STEDI piggyback harness into the headlight harness.
3. Run the earth cable on the piggyback to the vehicle chassis located adjacent to the vehicle battery via the provided M6 nut.
4. Plug in your STEDI smart harness into the piggyback T-Pin plug, paying attention to the labeled connectors.

Level 2

1. Run the exposed wire end of your piggyback through a suitable firewall grommet on the passenger side of your vehicle.
2. Remove the passenger footwell kick panel.
3. Locate the labeled high-beam signal wires.
4. Using provided crimp connectors, crimp the positive and negative wires to the corresponding connections.
5. Connect your STEDI Smart Harness to the piggy-back T-Connector.
