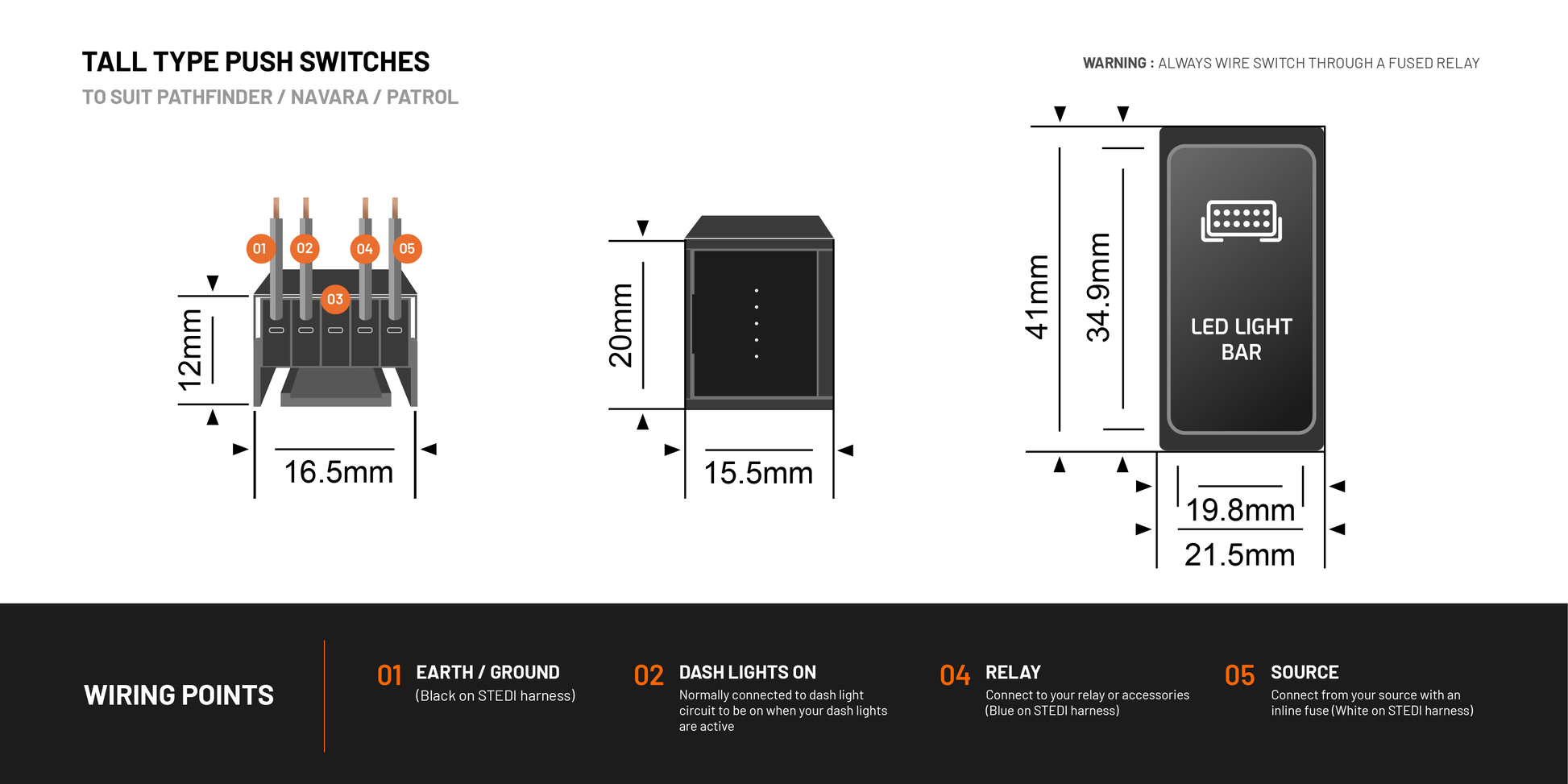

STEDI Nissan Tall Type Push Switch wiring diagram and installation instructions. See diagram below for wiring and installation details.
Using the locking tab as a reference, have it facing down and work from left to right.
01: Earth / Ground (black on the STEDI harness)
02: Dash Lights - Normally connected to dash light circuit to be on when your dash lights are active.
04: Relay - Connect to your relay or accessories (blue on STEDI harness)
05: Source - Connect from your source with an inline fuse (white on STEDI harness)
