Our range of Copper Head H7 + H1 special adaptors & bulb holders cater to the vehicles that run additional brackets to secure the light into the housing. As these are a new range for us and we will need time to research which vehicles require which brackets/holders, at this stage we only have a small list of known compatibility in our database but have provided this guide to help you locate the right fitting for your car. Also, note that some bulb holders can look similar with only minor variations to the dimensions which may not fit correctly into the globe socket.

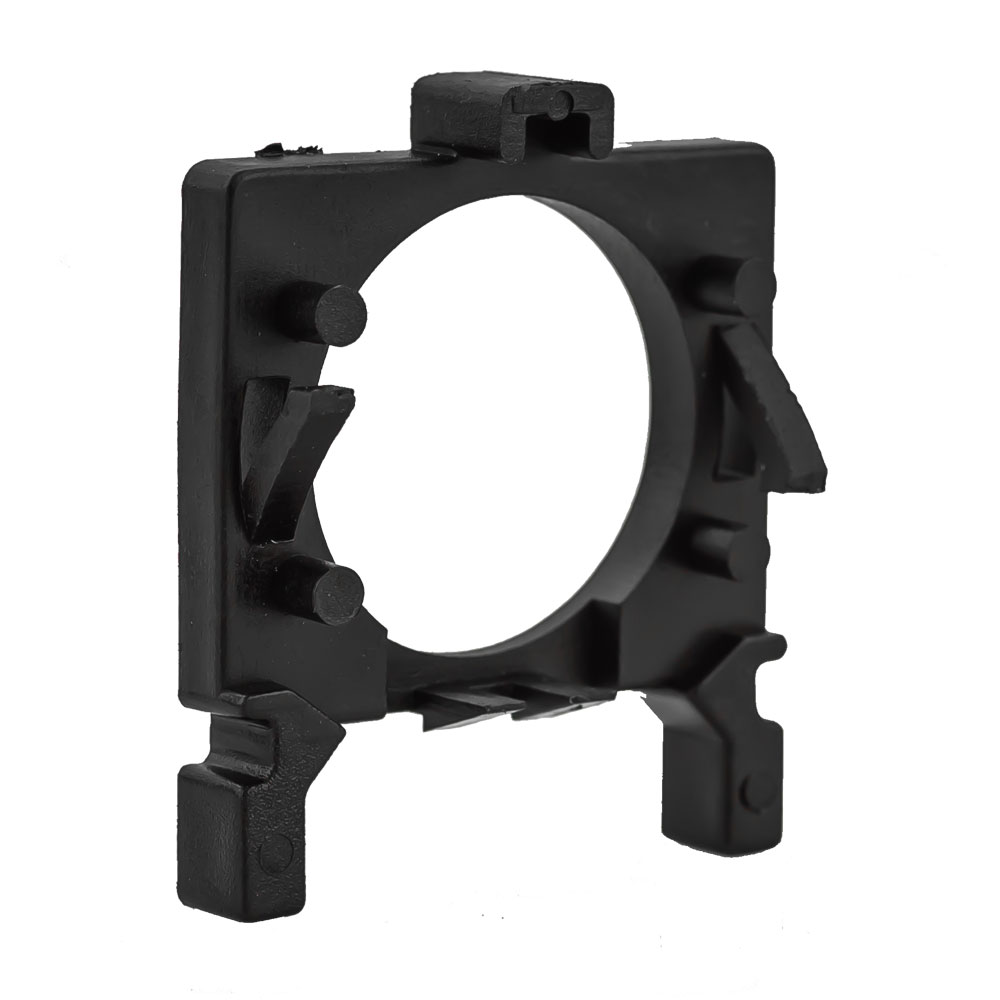

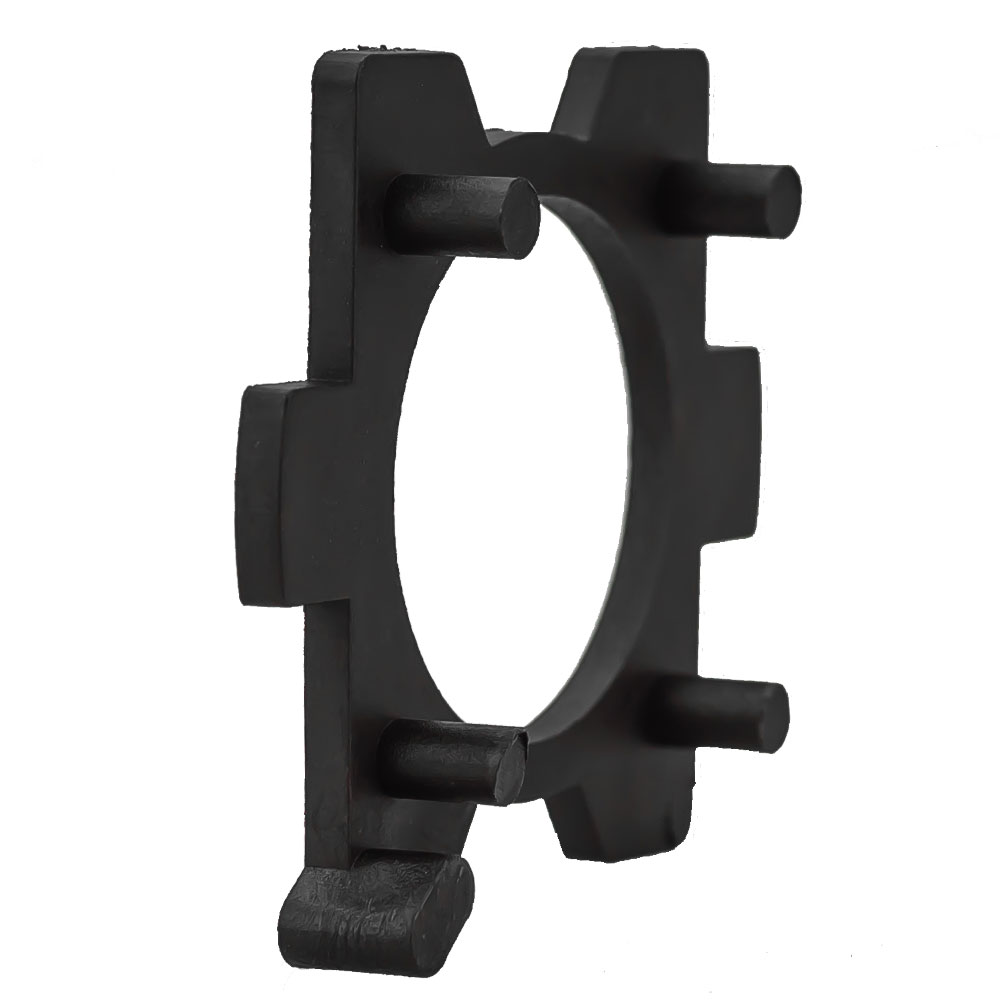

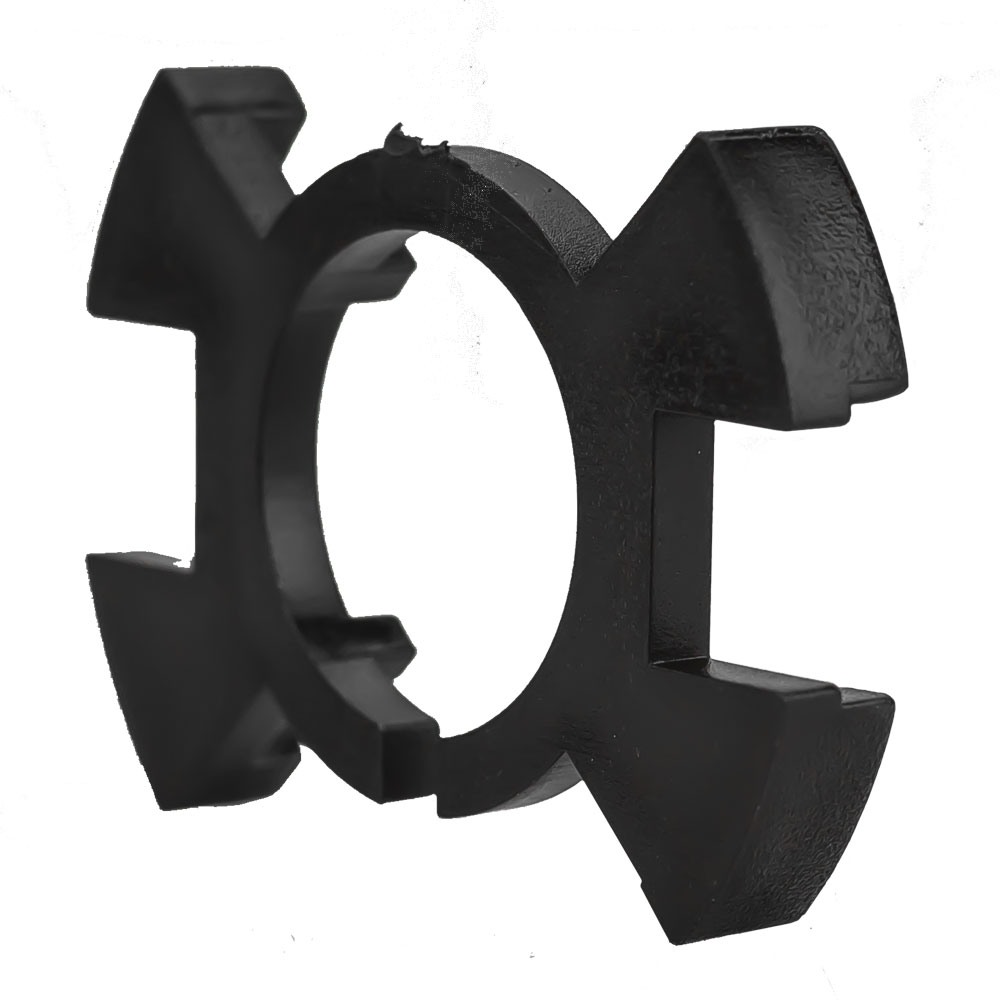

BULB HOLDER TYPES

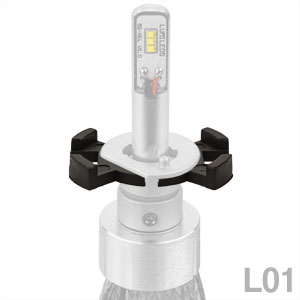

L01 ADAPTOR (FOR H1)

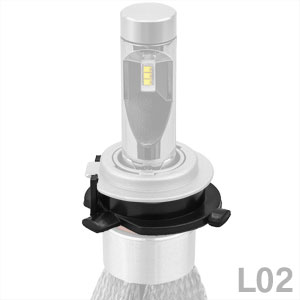

L02 ADAPTOR (FOR H7)

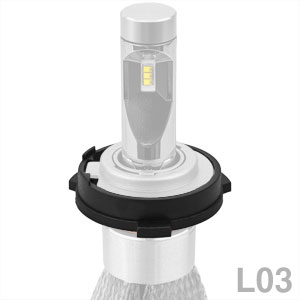

L03 ADAPTOR (FOR H7)

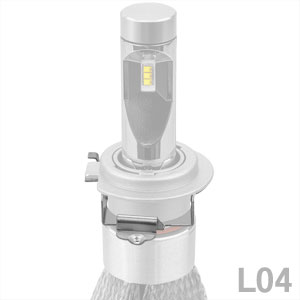

L04 ADAPTOR (FOR H7)

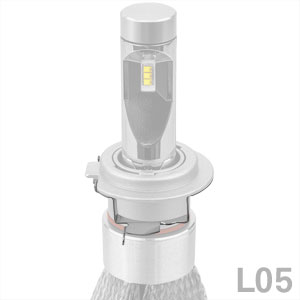

L05 ADAPTOR (FOR H7)



L06 ADAPTOR (FOR H7)

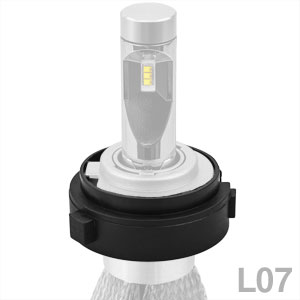

L07 ADAPTOR (FOR H7)

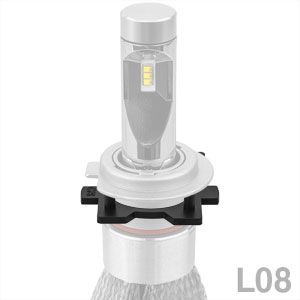

L08 ADAPTOR (FOR H7)

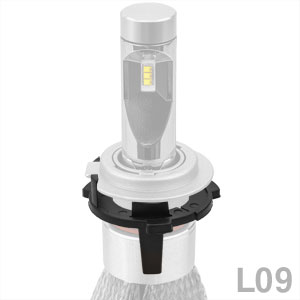

L09 ADAPTOR (FOR H7)

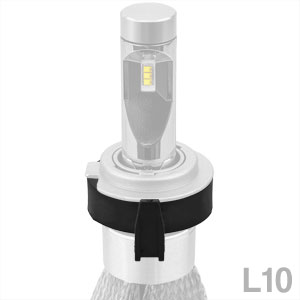

L10 ADAPTOR (FOR H7)

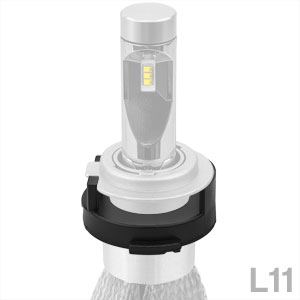

L11 ADAPTOR (FOR H7)

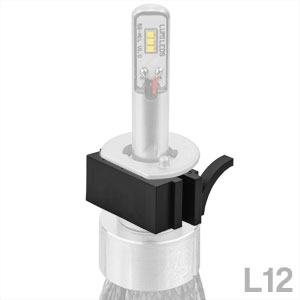

L12 ADAPTOR (FOR H1)

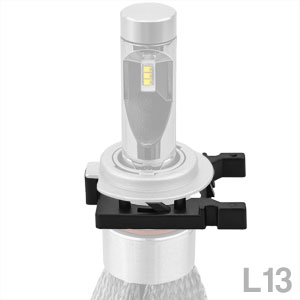

L13 ADAPTOR (FOR H7)

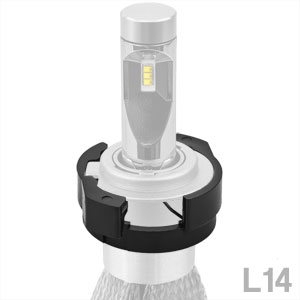

L14 ADAPTOR (FOR H7)

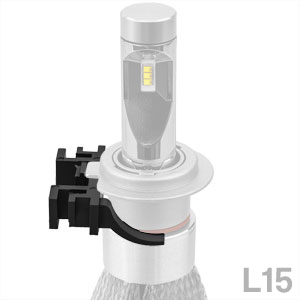

L15 ADAPTOR (FOR H7)

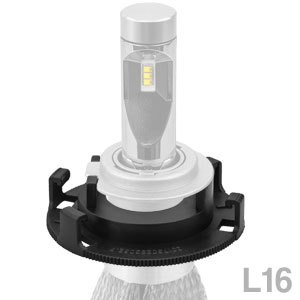

L16 ADAPTOR (FOR H7)

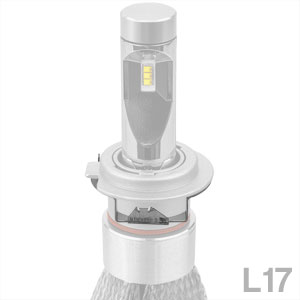

L17 ADAPTOR (FOR H7)

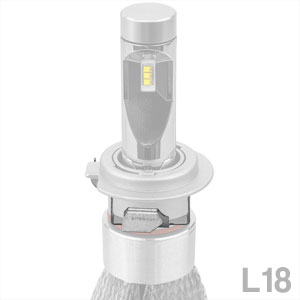

L18 ADAPTOR (FOR H7)

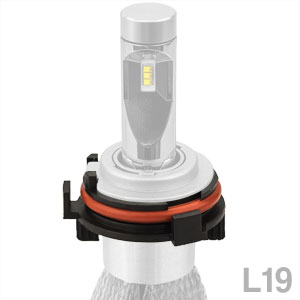

L19 ADAPTOR (FOR H7)

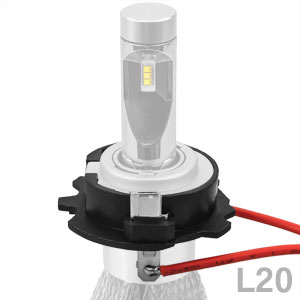

L20 ADAPTOR (FOR H7)



INSTALLATION:

BULB HOLDERS:

Start by removing the H7 collar from the unit by twisting to release and lifting off. Once you have the correct holder required for your vehicle, it will need to be secured onto the H7 collar. This process can be a little difficult as the collar and holder connect quite firmly so additional tools may be required.



Once secured place the collar back over the globe and lock into position. This can only be fitted one way as the clips either side are different sizes, twist to secure.



Install the complete globe unit into the headlight housing securing into position, make sure the globe fits nicely and does not move freely too easily. If the globe will not secure properly or does not seem to be as secure as the original globe, make sure that the bulb holder has been installed correctly and sitting firmly on the collar. Please make sure the holder type you have selected were the correct ones for your vehicle.



Once mounted back into the housing unit, test the headlights making sure everything is working as intended, attach any covers or dust caps that had been removed for installation and you're all good to go. If there are other aspects of the installation process you are unsure of like CANBUS Modules and so forth, please refer to our LED Conversion Guide.

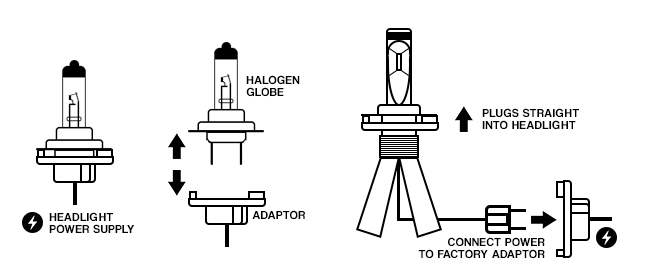

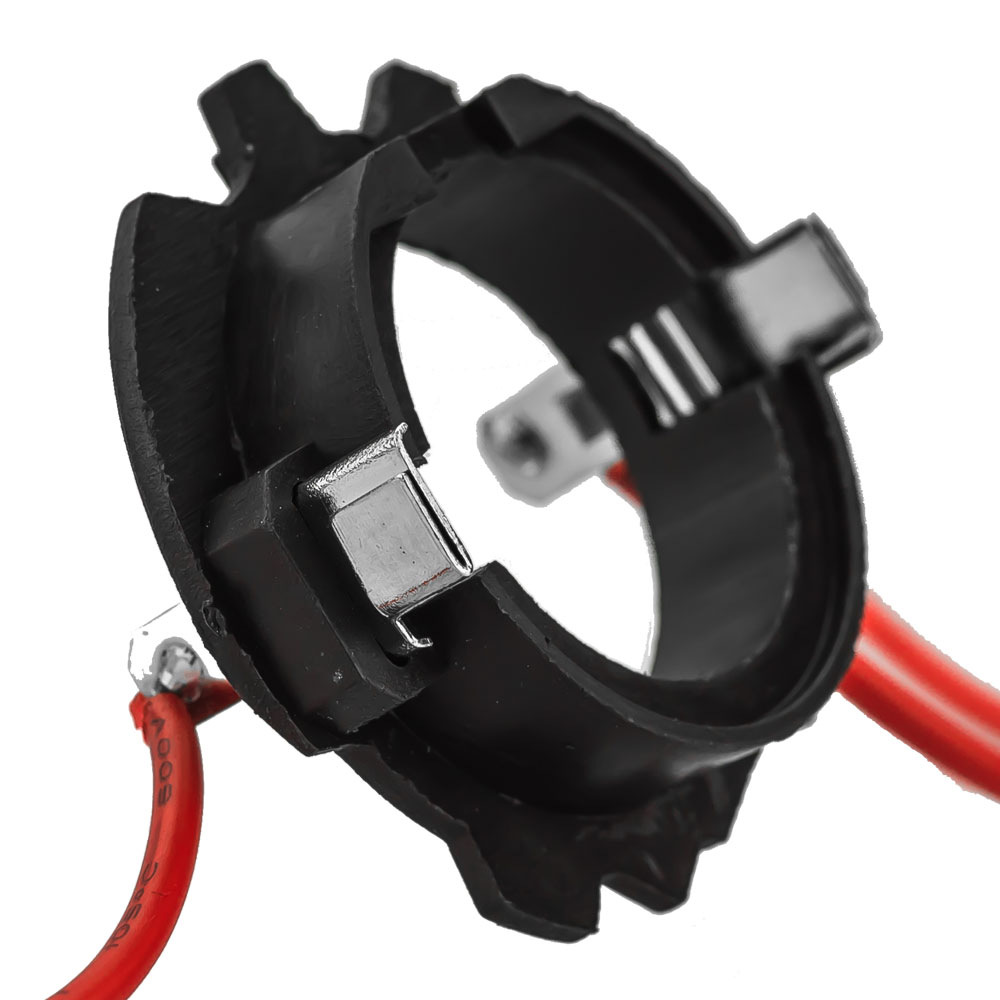

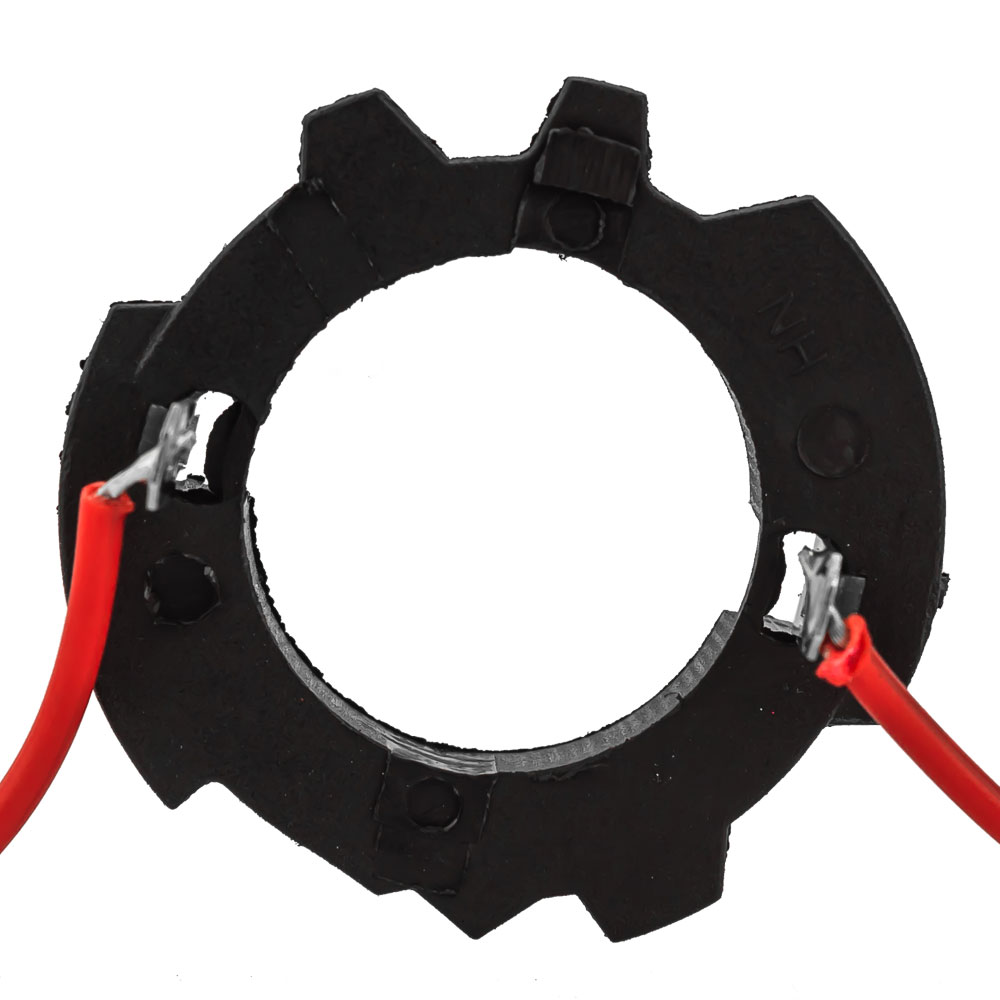

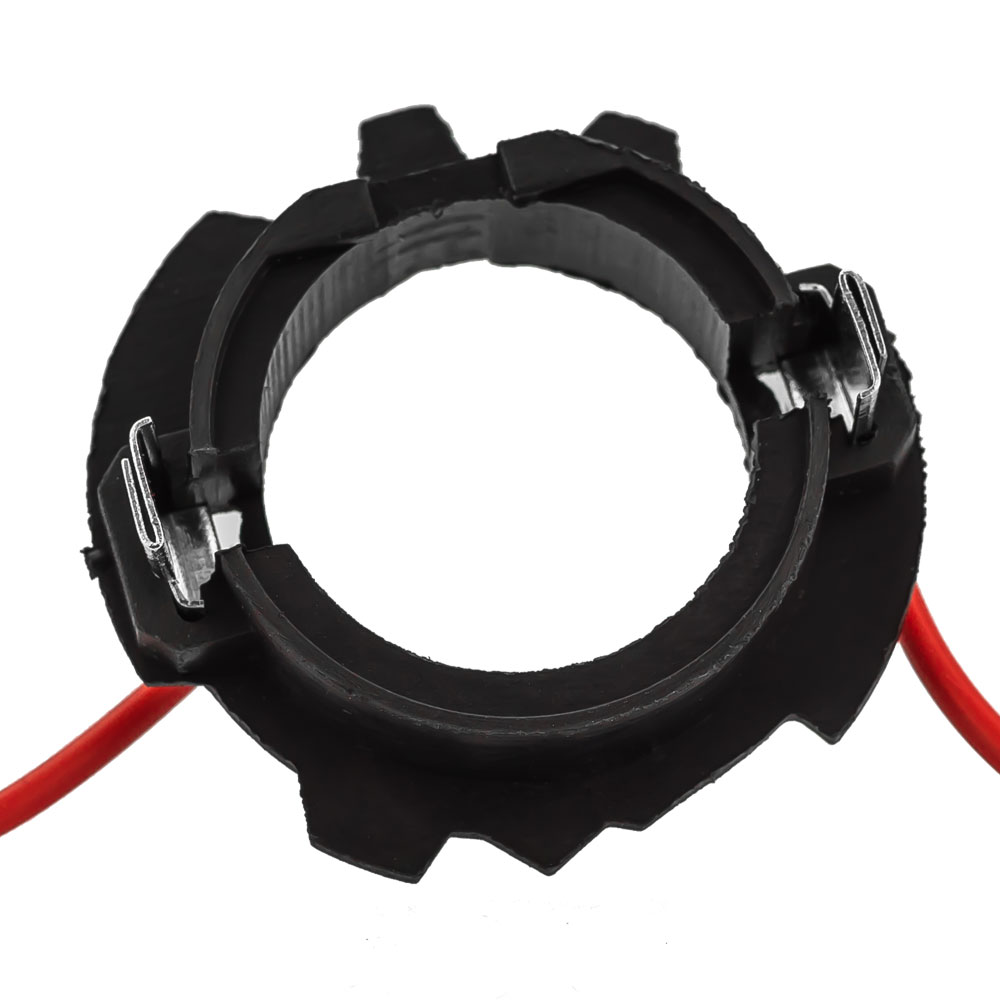

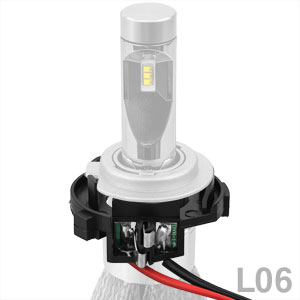

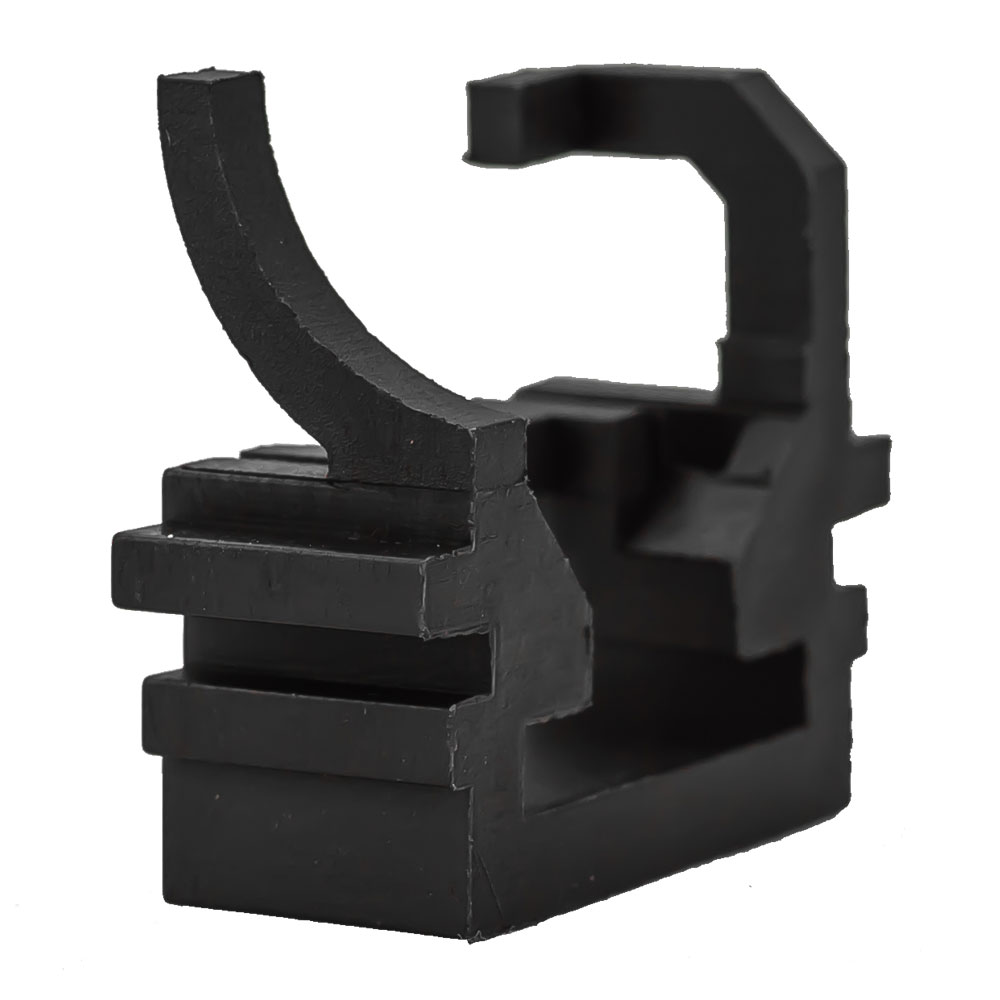

L06 SPECIAL ADAPTOR:

The L06 is compatible with vehicles that power the H7 globe via the side of the collar. L06 special adaptors grab the positive and negative from this point and allow you to connect the H7 plug on the copper head driver to draw power through the factory tabs.
