Interior LED Installation Guide

HOW TO INSTALL YOUR NEW LED BULB UPGRADE:

Upgrading your interior lights to LED helps bring the interior out of the stone age. With a wide range of interior upgrades now available and always more on the horizon, we have almost all applications covered. For most, the installation will be very simple and generally just plugs straight in. When removing any covers/casing that conceals the globe, be mindful not to break any tabs or clips used to secure the position. As always if you find yourself getting stuck at any point feel free to call us Monday to Friday 9:00 am - 4:00 pm on (03) 9369 8845.

LED INTERIOR LIGHTS

We are currently in the process of creating LED conversion kits specific to a wide range of makes and models but this does require a lot of research into all the individual globes fitted around the inside of each vehicle. In the meantime, we are adding all the information required to convert to LED in our current available range which will expand as we come across different models requiring different globes, BA9s for example which is also a common parker globe.

Listed below are the current LED upgrades available at this stage.

WEDGE BASE GLOBES

T10 WEDGE

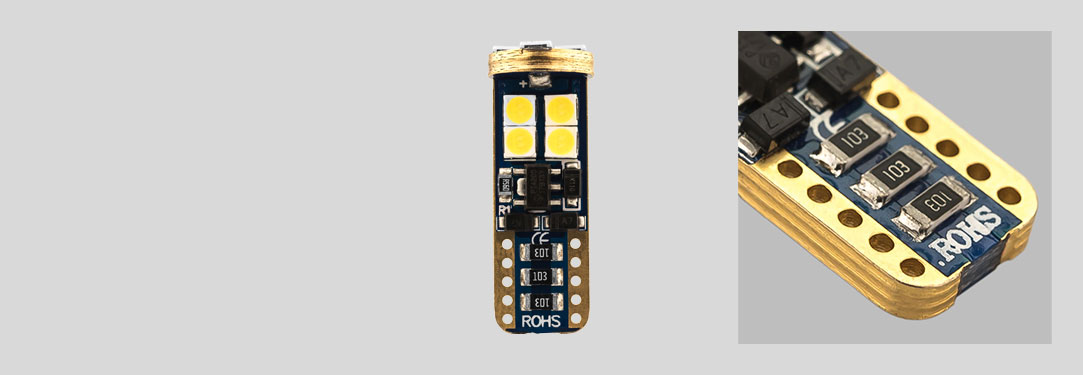

Starting off with most commonly found across the board is the T10. Used in most lighting throughout the interior of your car from dome/map globes to trunk and courtesy lights. Currently available in 2 sizes depending on the application, the T10 comes in 24mm & 28mm. Both have a standard 8.8mm width at the plug end as the fitting is standard.

When replacing these types of globe our STEDI T10s are compatible with all T10 Wedge sockets you will just need to measure the height for the intended fitting via the previous globe. It is important to get the right size globe to replace your old ones as the wrong size may not fit into the existing socket and may have performance issues. You will find that 28mm T10's will suit 98% of vehicle parker lights and 24mm will be suitable to use in DRLs.

T5 WEDGE

Found more commonly used for only interior use is the T5 (2721) globe. The type of applications includes gauge dashboard, instrumental plate, interior lighting, and in some cases license plate lights.

T20 WEDGE

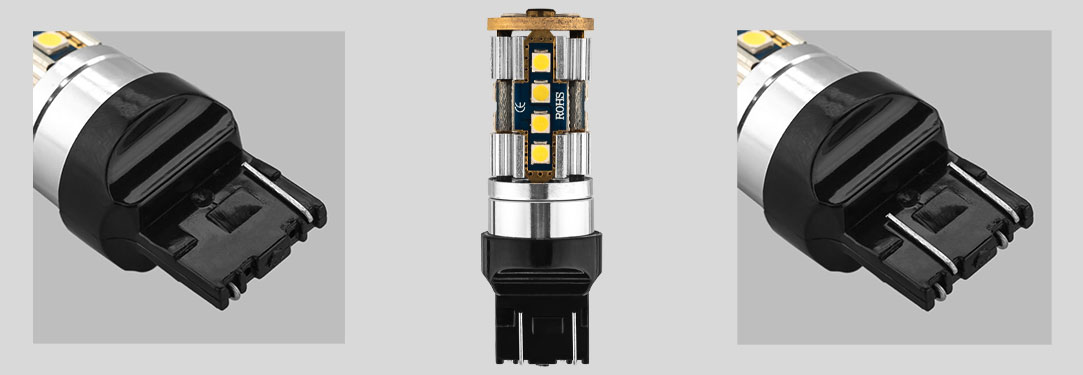

The T20 isn't very common when it comes to interior lighting but some specific models are fitted up with them. If these styles of globes are installed in your vehicle they are mostly found in the dome light and the 2 map lights. T20 bulbs also have 2 different types, 1 being single filament (7440) and the other being dual filament (7443). The difference is that the single filament is used for applications with only a single illumination option i.e no dimmer. The dual filament is cross-compatible with both 7440 & 7443 fittings. The 7443 can be used on applications such as DRLs and brake lights where there is more than one level of brightness required from the globe. For example, most DRL's will dim as the indicator is active as well as rear brake lights that also have 2 levels of brightness, one for driving at night and one when the brakes are being applied.

DOUBLE END GLOBES

FESTOON GLOBE

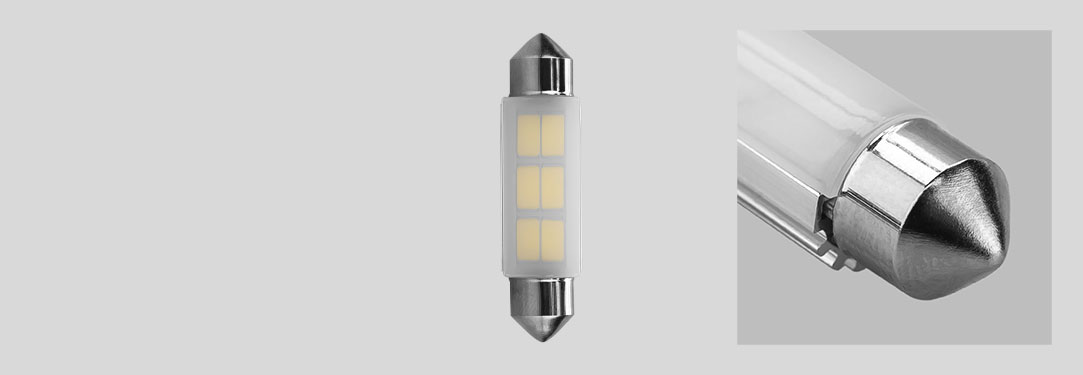

This style of globe is very similar to its usage as the T10 globe. Again available in 4 sizes, 28mm, 31mm, 36mm, and 42mm. The system in which Festoon globes is via 2 prongs each end in which the globe slots into. The Festoon globes are similar to the T10 application but dependent on the fitting style that your vehicle uses.

These globes are measured end to end but are compatible within 2mm longer or shorter due to the style in which they are fitted into the socket.

BAYONET GLOBES

The bayonet type globes run 2 most common sizes that are found in vehicle parker lights and interior, BA9s & BA15s. These types of globes run various different connector pin patterns which is why we have added as much information below to help you find the exact replacement suited to your vehicle. What we mean by this is the 2 little tabs either side of the base that the light connects to the socket by running either parallel or on an offset of height or symmetry.

BA15S / BA15D

Our BA15 Globes are available in 2 variants at this stage the difference being the BA15S which is a single filament usually found in reverse lights or parkers and the BA15D that is a dual filament and used for brake lights or other dimmable applications where there is full brightness and a dimmed brightness. The BA15S globe runs a directly parallel tab mount if you look at the 2 mounting tabs they will both sine up vertically and horizontally. The BA15D is slightly offset with one side being slightly higher than the other.+

BA9S

Common applications for BA9s globes include map/dome lighting, dashboard lights, footwell, gauges, vanity & instrument clusters. The fitting pins run parallel to one another which will slide into the mount and twist to lock into position.
